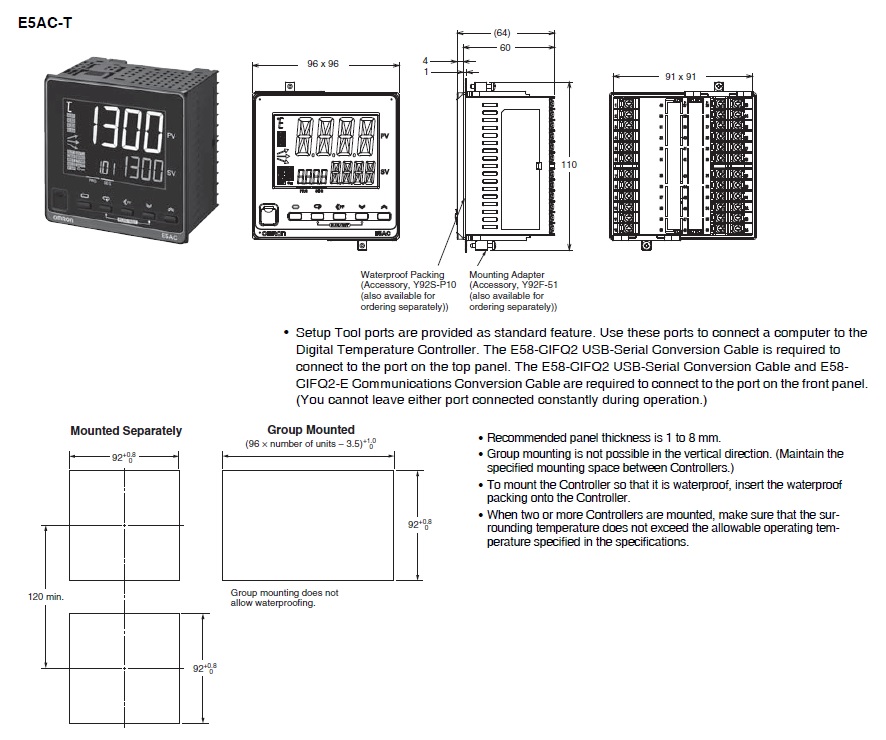

| Shape | DIN 96 x 96 |
|---|
| Fixed/Programmable | Programmable |
|---|
| Power supply voltage | 24 VAC (50/60 Hz)
24 VDC |
|---|
| Allowable voltage variable range | 85 to 110% of the power supply voltage |
|---|
| Power consumption | 3.4 W max. (at 24 VDC)
5.6 VA max. (at 24 VAC) |
|---|
| Input | Number of input points | 1 point |
|---|
| Temperature input | Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, PLII
Platinum resistance thermometer: Pt100, JPt100
Infrared Thermosensor: 10 to 70 ℃, 60 to 120 ℃, 115 to 165 ℃, 140 to 260 ℃ |
|---|
| Analog input | 4 to 20 mA, 0 to 20 mA, 1 to 5 V, 0 to 5 V, 0 to 10 V |
|---|
| Input impedance | Current input: 150 Ω max., voltage input: 1 MΩ min. (Applicable when connecting 1:1 to ES2-HB-N/THB-N.) |
|---|
| Control method | ON/OFF or 2-PID control with auto-tuning |
|---|

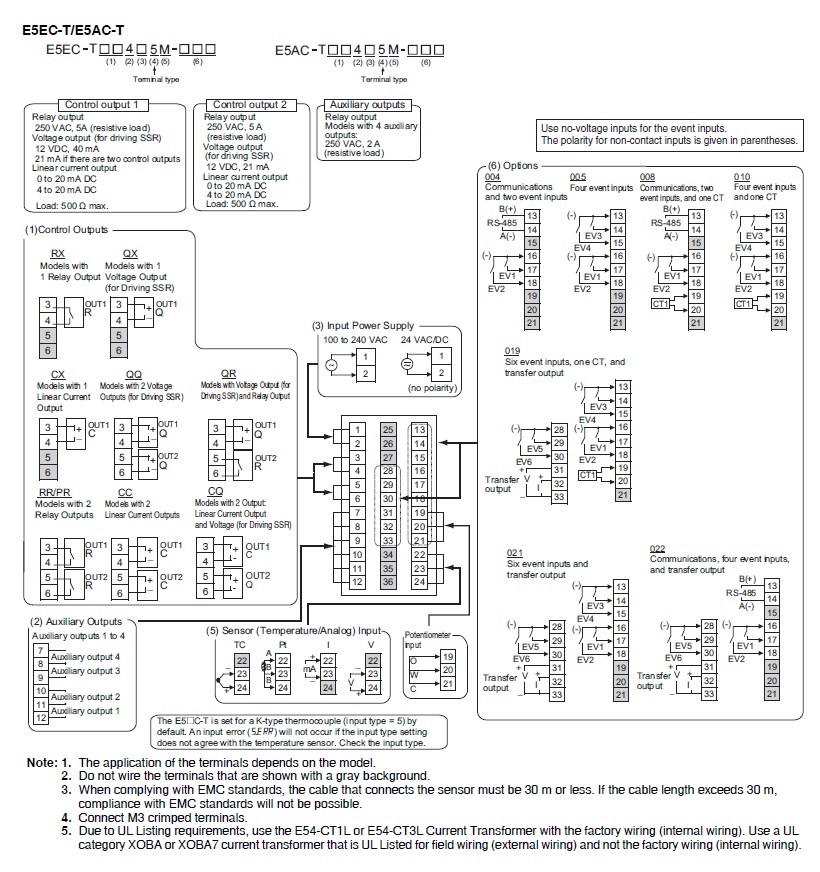

| Control output | Number of total control output | 2 point |
|---|
| Control output 1 | Voltage output (for driving SSR) |
|---|
| Control output 2 | Voltage output (for driving SSR) |
|---|
| Voltage output (for driving SSR) | 2 point
12 VDC±20%, Maximum load current: 21 mA, PNP, with short-circuit protection circuit |
|---|
| Auxiliary output | Number of total auxiliary output | 4 point |
|---|
| Relay output | SPST-NO, 250 VAC, 2 A (resistive load), electrical life: 100,000 operations (minimum applicable load: 5 V, 10 mA) |
|---|
| Event input | 4 point
Contact input: ON: 1 kΩ max., OFF: 100 kΩ min.
No-contact input: ON: Residual voltage 1.5 V max., OFF: Leakage current 0.1 mA max.
Current flow: Approx. 7 mA per point |
|---|
| Transfer output | 1 point
Current output: 4 to 20 mA DC (Load: 500 Ω max., Resolution: approx. 10000)
Linear voltage output: 1 to 5 VDC (Load: 1 kΩ min., Resolution: approx. 10000)
Accuracy: ±0.3% FS max. |
|---|
| Setting method | Digital setting using front panel keys |
|---|
| Indication method | 11-segment digital display and individual indicators |
|---|
| Sampling period | 50 ms |
|---|
| Hysteresis | Temperature input: 0.1 to 999.9 ℃ or °F (in units of 0.1 ℃ or °F)
Analog input: 0.01 to 99.99% FS (in units of 0.01% FS) |
|---|
| Proportional band | Temperature input: 0.1 to 999.9 ℃ or °F (in units of 0.1 ℃ or °F)
Analog input: 0.1% to 999.9% FS (in units of 0.1% FS) |
|---|
| Integral time | 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) |
|---|
| Derivative time | 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) |
|---|
| for cooling | Proportional band (P) | Temperature input: 0.1 to 999.9 ℃ or °F (in units of 0.1 ℃ or °F)
Analog input: 0.1% to 999.9% FS (in units of 0.1% FS) |
|---|
| Integral time (I) | 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) |
|---|
| Derivative time (D) | 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) |
|---|
| Control period | 0.1 s, 0.2 s, 0.5 s, 1 to 99 s (in units of 1 s) |
|---|
| Manual reset value | 0.0 to 100.0% (in units of 0.1%) |
|---|
| Insulation resistance | 20 MΩ min. (at 500 VDC) |
|---|
| Dielectric strength | 3,000 VAC 50/60 Hz 1 min (Between current-carrying terminals of different polarity) |
|---|
| Vibration resistance | Destruction: 10 to 55 Hz, 20 m/s2 for 2 h each in X, Y, and Z directions
Malfunction: 10 to 55 Hz, 20 m/s2 for 10 min each in X, Y, and Z directions |
|---|
| Shock resistance | Destruction: 300 m/s2, 3 times each in X, Y, and Z directions
Malfunction: 100 m/s2, 3 times each in X, Y, and Z directions |
|---|
| Ambient temperature (Operating) | -10 to 55 ℃ (with no freezing or condensation)
For 3-year warranty with standard mounting: -10 to 50 ℃ (with no freezing or condensation) |
|---|
| Ambient temperature (Storage) | -25 to 65 ℃ (with no freezing or condensation) |
|---|
| Ambient humidity (Operating) | 25 to 85 % |
|---|
| Altitude | 2000 m max. |
|---|
| Degree of protection | Front panel: IP66, Rear case: IP20, Terminal section: IP00 |
|---|
| Memory protection | Non-volatile memory (number of writes: 1,000,000) |
|---|
| Case color | Black |
|---|
| Terminal type | Screw terminal block |
|---|
| Accessories | Mounting adapter, Waterproof packing, Front Port Cover |
|---|
| Weight | Main Unit: Approx. 250 g
Adapter: Approx. 4 g x 2 |
|---|
| Sold separately | USB Serial Conversion Cable: E58-CIFQ2
Communications Conversion Cable: E58-CIFQ2-E
Terminal Cover: E53-COV24
Waterproof packing: Y92S-P10
Waterproof Cover: Y92A-96N
Front Port Cover: Y92S-P7
Adapter: Y92F-51
CX-Thermo Support Software: EST2-2C-MV4
Current Transformer (CT): E54-CT1/E54-CT1L/E54-CT3/E54-CT3L |
|---|
