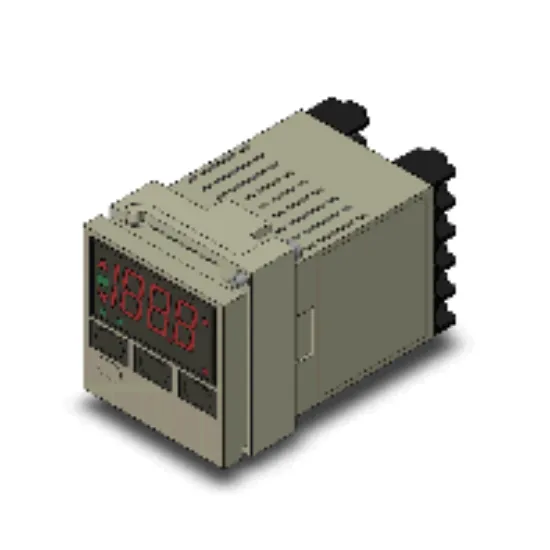

aut.vn Đồng hồ nhiệt Omron E5CSV-QTD

Shape : DIN48 x 48
Terminal type : Terminal blocks
Input type : Thermocouple/Platinum resistance thermometer
Control output 1 : Voltage output (for driving SSR)
Control output 2 : None
Power supply voltage : 24 VAC (50/60 Hz)
24 VDC
Shape : DIN48 x 48
Fixed/Programmable : Fixed
Power supply voltage : 24 VAC (50/60 Hz)
24 VDC
Allowable voltage variable range : 85 to 110% of the power supply voltage
Power consumption : 2 W (at 24 VDC)
3 VA (at 24 VAC)
Input : Number of input points : 1 point
Temperature input : Thermocouple: K, J, T, L, U, N, R
Platinum resistance thermometer: Pt100, JPt100
Control method : ON/OFF or 2-PID control with auto-tuning
Control output : Number of total control output : 1 point
Control output 1 : Voltage output (for driving SSR)
Control output 2 : None
Voltage output (for driving SSR) : 1 point
12 VDC 21 mA, with short-circuit protection circuit
Setting method : Digital setting using front panel keys
Indication method : 7-segment digital display and deviation indicators
Sampling period : 500 ms
Hysteresis : 0.1% FS (for ON/OFF control)
Proportional band : 1 to 999 ℃ (automatic adjustment using auto-tuning/self-tuning)
Integral time : 1 to 1999 s (automatic adjustment using auto-tuning/self-tuning)
Derivative time : 1 to 1999 s (automatic adjustment using auto-tuning/self-tuning)
Control period : 2 s or 20 s (switchable)
Insulation resistance : 20 MΩ min. (500 VDC megger)
Dielectric strength : 2,000 VAC 50/60 Hz 1 min (Between current-carrying terminals of different polarity)
Vibration resistance : Destruction: 10 to 55 Hz, 0.75 mm for 2 h each in X, Y, and Z directions
Malfunction: 10 to 55 Hz, 20 m/s2 for 10 min each in X, Y, and Z directions
Shock resistance : Destruction: 300 m/s2, 3 times each in 6 directions
Malfunction: 100 m/s2, 3 times each in 6 directions
Ambient temperature (Operating) : -10 to 55 ℃ (with no freezing or condensation)
For 3-year warranty: -10 to 50 ℃
Ambient temperature (Storage) : -25 to 65 ℃ (with no freezing or condensation)
Ambient humidity (Operating) : 25 to 85 %
Degree of protection : Front panel: IP66, Rear case: IP20, Terminal section: IP00
Memory protection : Non-volatile memory (number of writes: 1,000,000)
Case color : Black
Terminal type : Terminal blocks
Accessories : Adapter for Flush Mounting, Waterproof packing
Weight : Approx. 120 g
Sold separately : Hard Front Cover: Y92A-48B
Terminal Cover: E53-COV17
DIN track mounting adapter: Y92F-52
Waterproof packing: Y92S-29
Indication accuracy : Thermocouple: (±0.5% of indicated value or ±1 ℃, whichever is greater) ±1 digit max.
Platinum resistance thermometer: (±0.5% of indicated value or ±1 ℃, whichever is greater) ±1 digit max.
(The indication accuracy of U and L thermocouples is ±2 ℃ ±1 digit max. R thermocouples at a temperature of 200 ℃ max. is ±3 ℃ ±1 digit max.
Platinum resistance thermometer: Input set values 0, 1, 2, and 3 is 0.5% FS ±1 digit max.)
Influence of temperature/voltage : Thermocouple: R: (±1% of PV or ±10 ℃, whichever is greater) ±1 digit max.
Others: (±1% of PV or ±4 ℃, whichever is greater) ±1 digit max.
Platinum resistance thermometer: (±1% PV or ±2 ℃, whichever is greater) ±1 digit max.
Influence of EMS. : Thermocouple: R: (±1% of PV or ±10 ℃, whichever is greater) ±1 digit max.
Others: (±1% of PV or ±4 ℃, whichever is greater) ±1 digit max.
Platinum resistance thermometer: (±1% PV or ±2 ℃, whichever is greater) ±1 digit max.
