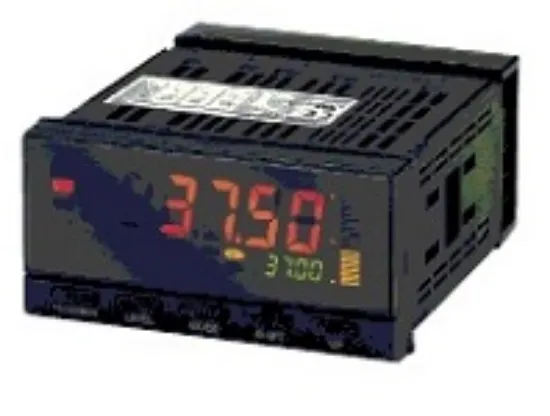

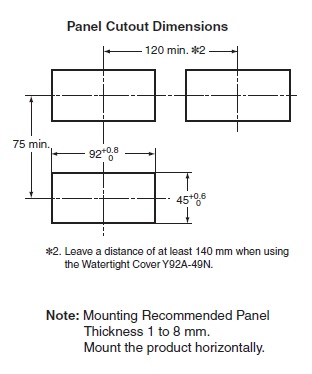

| Power supply voltage | 100 to 240 VAC 50/60 Hz |
|---|
| Allowable power supply voltage range | 85 to 110% of the power supply voltage |
|---|
| Power consumption | 18 VA max. (at maximum load) |
|---|
| External power supply | 12 VDC ±10% 80 mA |
|---|
| Input type | Temperature (Platinum resistance thermometer/Thermocouple) |
|---|
| Output type | Judgment output: ContactComparative output: H, LTransfer output: Linear voltage |
|---|
| Temperature measurement input (Accuracy) | Platinum resistance thermometer: (±0.2% PV or ±0.8 ℃ whichever is larger) ±1 digit max.Thermocouple: (±0.3% PV or ±1 ℃ whichever is larger) ±1 digit max.Conditions: (23±5 ℃)(The indication accuracy of K, T and N thermocouples at a temperature of -100 ℃ max. is ±2 ℃ ±1 digit max. U and L thermocouples is ±2 ℃ ±1 digit maximum. B thermocouple at a temperature of 400 ℃ max. is not specified. R and S thermocouples at a temperature of 200 ℃ max. is ±3 ℃ ±1 digit maximum. W thermocouples is (±0.3% PV or ±3 ℃, whichever is greater) ±1 digit maximum.) |
|---|
| Judgment output | Contact output | H, L (SPDT)Rated load: Resistive load: 250 VAC 5 A (cosφ=1)/30 VDC 5 A (L/R＝0 ms), Inductive load: 250 VAC 1 A (Close cosφ=0.4)/30 VDC 1 A (L/R＝7 ms)Life expectancy: 100,000 operations (Electrical)/5,000,000 operations (Mechanical) |
|---|
| Linear output | Linear voltage 0 to 5 VDC/1 to 5 VDC/0 to 10 VDCAllowable load impedance: 5 kΩ min.Resolution: Approx. 10000Output error: ±0.5% FS (1 V or less: ±0.15 V, not output for 0 or less) |
|---|
| Display | Display method | Negative LCD (backlit LED) 7-segment digital display |
|---|
| Digits | 5 digit (-19999 to 99999) |
|---|

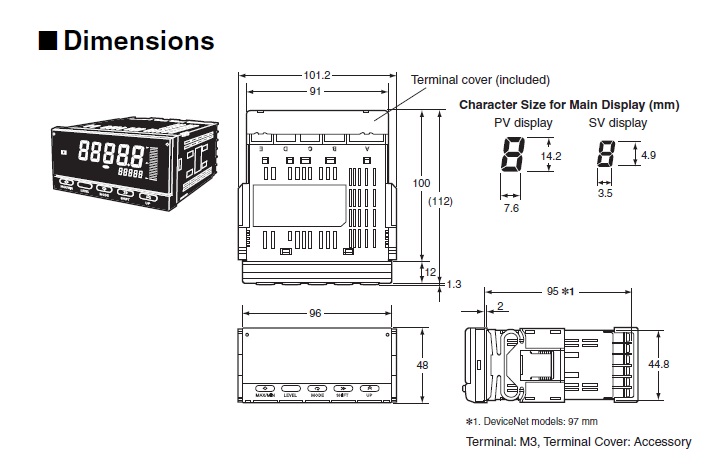

| Character height | PV: 14.2 mm (green/red)SV: 4.9 mm (green) |
|---|
| Sampling period | 50 times/second (20 ms) |
|---|
| Comparative output response time | Platinum resistance thermometer input ranges: 120 ms max.Thermocouple input ranges: 180 ms max. (time until the comparative output is made when there is a forced sudden change in the input signal from 15% to 95% or 95% to 15%.) |
|---|
| Linear output response time | Platinum resistance thermometer input ranges: 170 ms max.Thermocouple input ranges: 230 ms max. (time until the final analog output value is reached when there is a forced sudden change in the input signal from 15% to 95% or 95% to 15%.) |
|---|
| Insulation resistance | 20 MΩ min. (at 500 VDC) |
|---|
| Dielectric strength | Between the entire external terminal and case: 2,300 VAC 1 min |
|---|
| Noise immunity | ±1,500 V at power supply terminals in normal or common mode (waveform with 1-ns rising edge and pulse width of 1 µs/100 ns) |
|---|
| Vibration resistance | Malfunction: 10 to 55 Hz, Acceleration: 50 m/s2, 5 min 10 sweeps each in X, Y, and Z directions |
|---|
| Shock resistance | Malfunction: 100 m/s2, 3 times each in 3 axes 6 directions |
|---|
| Degree of protection | Front: NEMA4X for indoor use (equivalent to IP66)Case rear: IP20Terminals: IP00 + finger protection (VDE0106/100) |
|---|
| Memory protection | EE-PROM (non-volatile memory) Number of rewrites: 100,000 |
|---|
| Ambient temperature | Operating: -10 to 55 ℃ (with no freezing or condensation)Storage: -25 to 65 ℃ (with no freezing or condensation) |
|---|
| Ambient humidity | Operating: 25 to 85 % |
|---|
| Accessories | Waterproof packing, Fixtures, Terminal Cover, Unit label, Instruction manual |
|---|
| Weight | Approx. 300 g |
|---|
