| Power supply voltage | 100 to 240 VAC 50/60 Hz |
|---|
| Allowable power supply voltage range | 85 to 110% of the power supply voltage |
|---|
| Power consumption | 6 VA max. (at maximum load) |
|---|
| Input type | Temperature (Platinum resistance thermometer/Thermocouple) |
|---|
| Output type | Judgment output: ContactComparative output: OUT 1 |
|---|
| Temperature measurement input (Accuracy) | Platinum resistance thermometer: (±0.5% of indicated value or ±1 ℃, whichever is greater) ±1 digit max.Thermocouple: (±0.5% of indicated value or ±1 ℃, whichever is greater) ±1 digit max.(The indication accuracy of K thermocouples in the -200 to 1300 ℃ range, T and N thermocouples at a temperature of -100 ℃ max., and U and L thermocouples at any temperatures is ±2 ℃ ±1 digit maximum. B thermocouple at a temperature of 400 ℃ max. is not specified. R and S thermocouples at a temperature of 200 ℃ max. is ±3 ℃ ±1 digit maximum.) |
|---|
| Judgment output | Contact output | SPDTRated load: Resistive load: 250 VAC 5 A (cosφ=1)/5 A at 30 VDC, Inductive load: 250 VAC 1.5 A (cosφ=0.4)/30 VDC 1.5 A (L/R＝7 ms)Minimum applicable load: 10 mA at 5 VDC (failure level: P Reference value)Life expectancy: 100,000 operations min. (Electrical)/20 million operations min. (Mechanical) |
|---|
| Display | Display method | Negative LCD (backlit LED) 7-segment digital display |
|---|
| Digits | 4 digit (-1999 to 9999) |
|---|

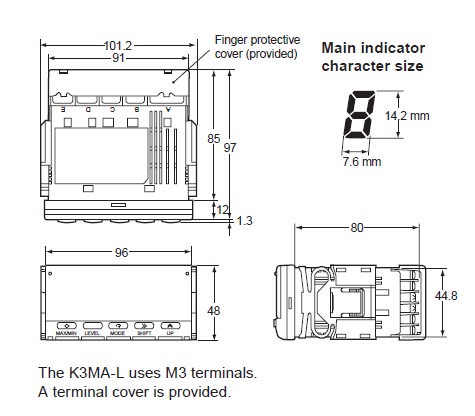

| Character height | 14.2 mm (green/red) |
|---|
| Sampling period | 500 ms |
|---|
| Comparative output response time | 1 s max. |
|---|
| Insulation resistance | Between the entire external terminal and case: 20 MΩ min. (at 500 VDC)Between inputs, outputs, and power supply: 20 MΩ min. (at 500 VDC) |
|---|
| Dielectric strength | Between the entire external terminal and case: 2,000 VAC 1 min |
|---|
| Noise immunity | ±1,500 V at power supply terminals in normal or common mode (waveform with 1-ns rising edge and pulse width of 1 µs/100 ns) |
|---|
| Vibration resistance | Malfunction: 10 to 55 Hz, Single amplitude 0.35 mm, 10 sweeps of 5 min each in X, Y, and Z directions |
|---|
| Shock resistance | Malfunction: 100 m/s2, 3 times each in 3 axes 6 directions |
|---|
| Degree of protection | Front: NEMA TYPE 4X for indoor use (equivalent to IP66)Case rear: IP20Terminals: IP00 + finger protection (VDE0106/100) with terminal Cover |
|---|
| Memory protection | Non-volatile memory (Number of rewrites: 100,000) |
|---|
| Ambient temperature | Operating: -10 to 55 ℃ (with no freezing or condensation)Storage: -25 to 65 ℃ (with no freezing or condensation) |
|---|
| Ambient humidity | Operating: 25 to 85 % (with no condensation) |
|---|
| Accessories | Waterproof packing, Terminal Cover, Unit label |
|---|
| Weight | Approx. 200 g |
|---|
