| Function | 1 Stage Preset Counter, Total Preset Counter |
|---|
| Preset stages | 1 step |
|---|
| Rated supply voltage | 100 to 240 VAC 50/60 Hz |
|---|
| Operating voltage range | 85 to 110% of rated power supply voltage |
|---|
| Power consumption | at 100 to 240 VAC: 9.6 VA max. |
|---|
| External power supply | 12 VDC (±10%) 100 mA |
|---|
| Counter | Count range | -99999 to 999999 |
|---|
| Max. counting speed | 30 Hz/5 kHz (switching)(ON/OFF ratio 1:1) |
|---|
| Minimum input signal width | 30 Hz: 16.7 ms5 kHz: 0.1 ms |
|---|
| Input mode | Increment (UP), decrement (DOWN), increment/decrement (UP/DOWN A (command input), UP/DOWN B (individual inputs), or UP/DOWN C (quadrature inputs)), UP/DOWN D (command input), UP/DOWN E (individual inputs), UP/DOWN E (quadrature inputs)) |
|---|
| Output modes | N, F, C, R, K-1, P, Q, A, K-2, D, L |
|---|
| One-shot output time | 0.01 to 99.99 s |
|---|
| Reset system | External (Minimum input signal width: 1 ms/20 ms selectable, manual and automatic reset (internal according to C, R, P and Q mode operation) |
|---|

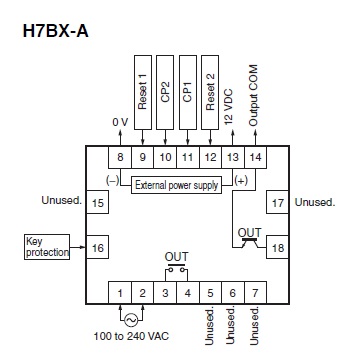

| Input | Input signal | CP1, CP2, Reset 1, Reset 2, Key protect |
|---|
| Input method | No-voltage (NPN)/Voltage input (PNP) selectable |
|---|
| No-voltage input (No-contact input） | Short-circuit (ON) impedance: 1 kΩ max. (Leakage current (0 Ω): Approx. 12 mA)Residual voltage: 3 V max.Open circuit impedance: 100 kΩ min. |
|---|
| No-voltage input (Contact input） | Use a contact which can adequately switch 5 mA at 10 V. |
|---|
| Voltage input | Hight level: 4.5 to 30 VDCLow level: 0 to 2 VDC (Input resistance Approx. 4.7 kΩ) |
|---|
| Control output | Contact output | SPST-NO3 A at 250 VAC/30 VDC, resistive load (cos phi=1)Minimum applicable load: 10 mA at 5 VDC (failure level:P reference value) |
|---|
| Solid-state output | NPN30 VDC max., 100 mA max.Residual voltage 1.5 V max.DCCapacity value: Approx. 1 VLeakage current 0.1 mA max. |
|---|
| Display | Display method | 7-segment backlit negative transmissive LCD |
|---|
| Digits | 6 digit |
|---|
| Character height | Count value: 13.5 mm (Red or green programmable)Set value: 9 mm (green) |
|---|
| Prescaling function | 0.001 to 99.999 |
|---|
| Decimal point adjustment | Rightmost 3 digits |
|---|
| Key protection | Key protect input |
|---|
| Memory backup methods | Method: Non-volatile memory, Number of rewite: 100,000 operations min., Store data: 10 years min. |
|---|
| Ambient temperature (Operating) | -10 to 55 ℃ (with no icing) |
|---|
| Ambient temperature (Storage) | -25 to 65 ℃ (with no icing) |
|---|
| Ambient humidity (Operating) | 25 to 85 % (with no condensation) |
|---|
| Insulation resistance | Between current carrying terminals and exposed non-current carrying metal parts: 100 MΩ min. (at 500 VDC)Between non-continuous contacts: 100 MΩ min. (at 500 VDC) |
|---|
| Dielectric withstand voltage | Between current carrying metal parts and non-current carrying metal parts: 2000 VAC 50/60 Hz 1 minBetween operating power circuit and input circuit: 2000 VAC 50/60 Hz 1 minBetween control output, and power supply/input circuit: 2000 VAC 50/60 Hz 1 minBetween non-continuous contacts: 1000 VAC 50/60 Hz 1 min |
|---|
| Impulse withstand voltage | Between power terminals: 6 kVBetween current carrying terminals and exposed non-current carrying metal parts: 6 kV |
|---|
| Noise immunity | Between power terminals: ±1.5 kVBetween input terminals: ±600 Vsquare-wave noise by noise simulator (pulse width: 100 ns/1 µs, 1-ns rise) |
|---|
| Static immunity | Mulfunction: 8 kV, Destruction: 15 kV |
|---|
| Vibration resistance | Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 2 hMalfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min |
|---|
| Shock resistance | Destruction: 294 m/s2, 3 times each in 3 axes 6 directionsMalfunction: 98 m/s2, 3 times each in 3 axes 6 directions |
|---|
| Life expectancy | Mechanical life 10 million operations min.Electrical life 100,000 operations min. (3 A at 250 VAC resistive load) |
|---|
| Degree of protection | Case front: IP54 |
|---|

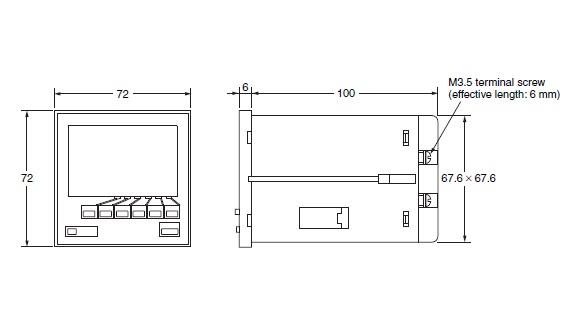

| External connection method | Screw terminal |
|---|
| Case color | Black (Munsell N1.5) |
|---|
| Accessories | Mounting Bracket, Terminal Cover |
|---|
| Weight | Approx. 250 g |
|---|
