Timer Omron H3FA-SB DC5/6

Timer Omron H3FA-SB DC5/6
Solid-state Timer
No-Contact output (SPST-NO + SPST-NC)
Time range: 6 s to 60 min
Time-limit operation/power-OFF resetting and external resetting
Integrating operation/power-OFF resetting and external resetting
5/6 VDC

Mua Ngay : Zalo

nhà chế tạo: Omron
SKU: H3FA-SB DC5/6
Ngày giao hàng: 1-3 days
Giá cũ: 1.188 ₫
990 ₫
Giao đến
*
*
Phương pháp vận chuyển
Tên
Ngày dự kiến giao hàng
Giá bán
Không có tùy chọn giao hàng nào

Thông Tin Sản Phẩm: H3FA-SB DC5/6

Thông Tin Kỹ Thuật cơ bản của : Timer Omron H3FA-SBU DC12/24

Rated power supply voltage 5/6 VDC Ripple 3% max.
Control output (Type) Transistor output
Operating resetting Time-limit operation/power-OFF resetting and external resetting, Integrating operation/power-OFF resetting and external resetting
Connecting method PCB terminal

Thông số kỹ thuật chi tiết sản phẩm: Timer Omron H3FA-SBU DC12/24

Rated power supply voltage5/6 VDC Ripple 3% max.
Allowable voltage variable rangefor 5 VDC: 90 to 110% of the power supply voltage/for 6 VDC: 85 to 110% of the power supply voltage
Power consumptionApprox. 80 mW
Number of time ranges4
Operation modePower ON-delay, Cumulative

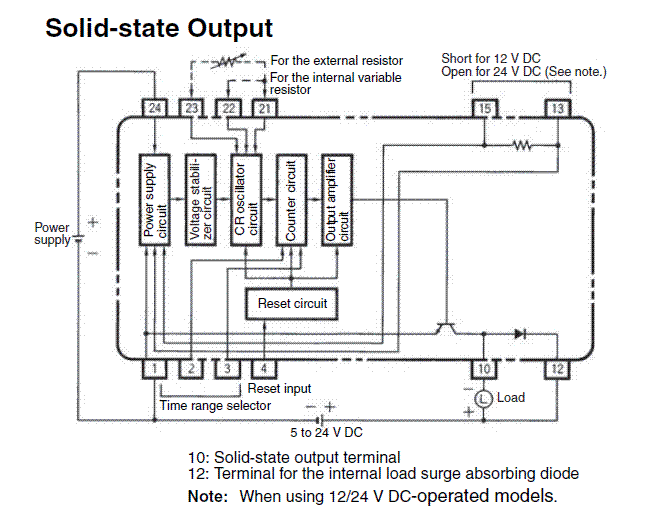

Control output (Type)Transistor output
Control output (No-contact output)150 mA max. at 30 VDC, ON residual voltage: 1.0 V max.
Operating resettingTime-limit operation/power-OFF resetting and external resetting, Integrating operation/power-OFF resetting and external resetting
Ambient temperature rangeOperating: -10 to 55 ℃ (with no icing)Storage: -25 to 65 ℃ (with no icing)
Ambient humidity rangeOperating: 35 to 85 %
Accuracy of operating time±0.5% FS max.
Setting error0 to +30% FS max. (at 20 ℃, rated voltage)
Reset time10 ms max.
Influence of voltage±2% FS max.
Influence of temperature±5% FS max.
Insulation resistance100 MΩ min. (at 500 VDC)
Dielectric strengthBetween control output terminals and operating circuit: 1,500 VAC 50/60 Hz 1 minBetween non-continuous contacts: 1,000 VAC 50/60 Hz 1 min
Vibration resistanceDestruction: 10 to 55 Hz, 0.375 mm single amplitude each in 3 directions for 2 hMalfunction: 10 to 55 Hz, 0.25 mm single amplitude each in 3 directions for 10 min
Shock resistanceDestruction: 1,000 m/s2, 3 times each in 6 directionsMalfunction: 100 m/s2, 3 times each in 6 directions

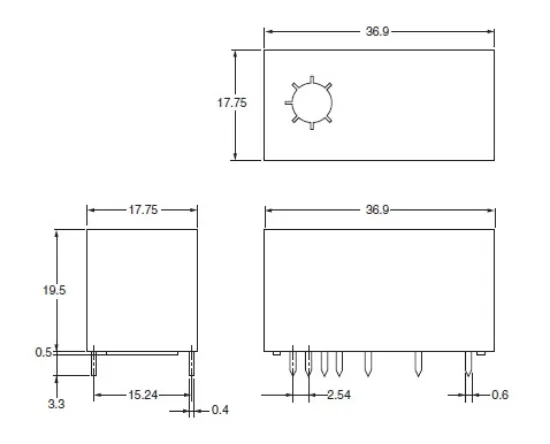

Connecting methodPCB terminal
WeightApprox. 10 g
