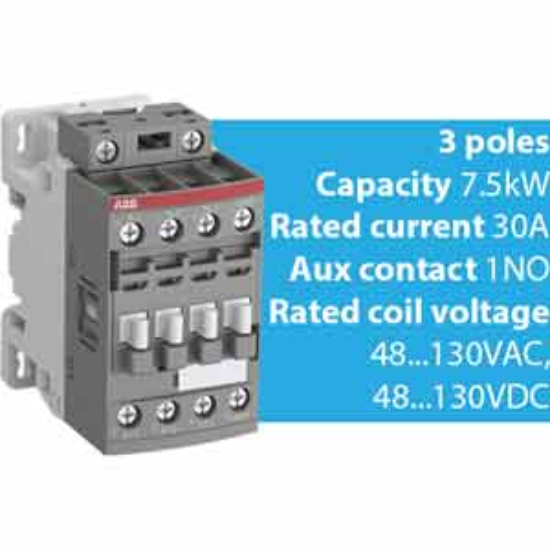

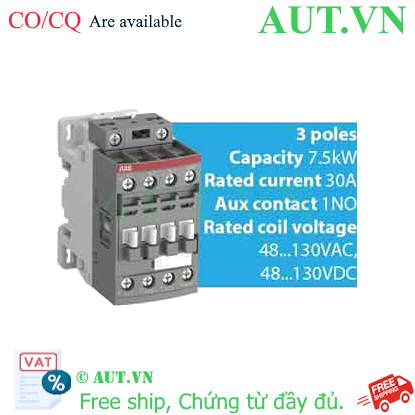

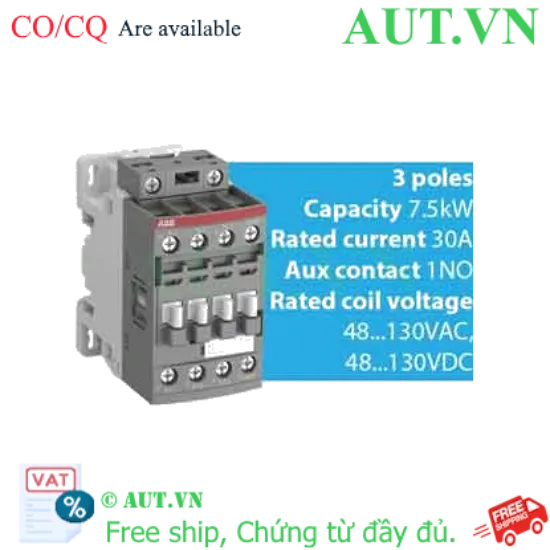

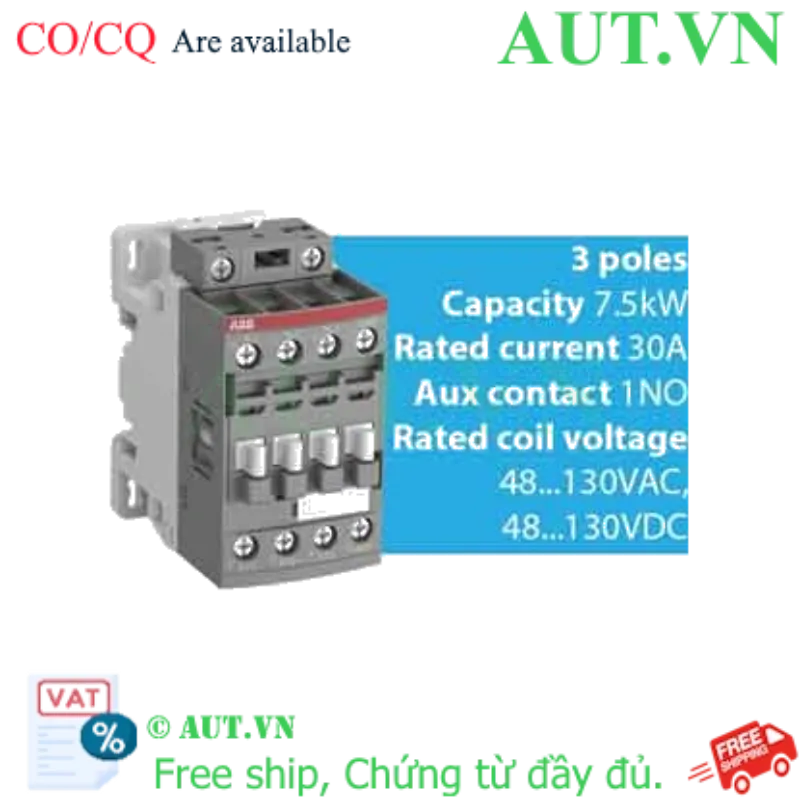

| Model | 1SBL177001R1201 (AF16-30-01-12) |
| Dòng điện (Ie) | 30A |
| Công suất | 7.5kW |
| Số cực | 3P |
| Tiếp điểm chính | 3NO |
| Cuộn dây | 48...130VAC, 48...130VDC |
| Tiếp điểm phụ | 1NC |
| Phụ kiện mua rời | DIN-rail: HYBT-01, DIN-rail: PFP-100N, DIN-rail: TC 5x35x1000-Aluminiu m, DIN-rail: TC 5x35x1000-Steel, Stopper: BIZ-07, Stopper: BNL6, Stopper: HYBT-07, Impulse contact block: 1SBN010013R1010 (CB5-10), Impulse contact block: 1SBN010013R1001 (CB5-01), Interface relay: 1SBN060100R1000 (RA4), Mechanical latching unit: 1SBN040100R1011 (WA4-11), Mechanical latching unit: 1SBN040100R1012 (WA4-12), Mechanical latching unit: 1SBN040100R1013 (WA4-13), Mechanical latching unit: 1SBN040100R1014 (WA4-14), Coil terminal block: 1SBN070156T1000 (LDC4), Coil terminal block: 1SBN070159T1000 (LDC4K), Protective cover: 1SBN110108T1000 (BX4), Connecting link: 1SBN081306T1000 (BEA16-4), Connection set: 1SBN081311R1000 (BER16-4), Connection set: 1SBN081313R2000 (BEY16-4) [...] |
| Tiếp điểm phụ (Mua riêng) | 1SBN010110R1010 (CA4-10), 1SBN010110T1010 (CA4-10-T), 1SBN010110R1001 (CA4-01), 1SBN010110T1001 (CA4-01-T), 1SBN010111R1010 (CC4-10), 1SBN010111R1001 (CC4-01), 1SBN010120R1011 (CAL4-11), 1SBN010120T1011 (CAL4-11-T), 1SBN010160R1001 (CA4-01K), 1SBN010160R1010 (CA4-10K), 1SBN010160T1001 (CA4-01K-T), 1SBN010160T1010 (CA4-10K-T), 1SBN010134R1011 (CA4-11K), 1SBN010015R1001 (CE5-01D0.1), 1SBN010015R1010 (CE5-10D0.1), 1SBN010016R1001 (CE5-01W0.1), 1SBN010016R1010 (CE5-10W0.1), 1SBN010017R1001 (CE5-01D2), 1SBN010017R1010 (CE5-10D2), 1SBN010018R1001 (CE5-01W2), 1SBN010018R1010 (CE5-10W2), 1SBN010140R1322 (CA4-22U), 1SBN010140R1331 (CA4-31U), 1SBN010140R1340 (CA4-40U), 1SBN010151R1311 (CAT4-11U) [...] |
| Tiếp điểm phụ có thời gian (Mua riêng) | 1SBN020112R1000 (TEF4-ON), 1SBN020113R1000 (TEF4S-ON), 1SBN020114R1000 (TEF4-OFF), 1SBN020115R1000 (TEF4S-OFF) [...] |
| Khóa liên động cơ (Mua riêng) | 1SBN030105T1000 (VM4), 1SBN030111R1000 (VEM4) |
| Loại | Electromagnetic starter |
| Kích thước | 16AF |
| Công suất động cơ | 7.5kW at 400VAC |
| Tần số | 50/60Hz |
| Điện áp dây | AC, DC |
| Điện áp | 690VAC, 220VDC |
| Thời gian khởi động | 13...98ms coil de-energization and NC contact closing, 11...95ms coil de-energization and NO contact opening, 38...90ms coil energization and NC contact opening, 40...95ms coil energization and NO contact closing [...] |
| Chức năng mở rộng | AF09...AF38 series contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC and 220 V DC. These contactors are of the block type design with 3 main poles, Manage large control voltage variations, Reduced panel energy consumption, Very distinct closing and opening [...] |
| Đấu nối | Bắt vít |
| Lắp đặt | Gắn thanh ray |
| Nhiệt độ môi trường | -40...70°C |
| Khối lượng tương đối | 270g |
| Chiều rộng tổng thể | 45mm |
| Chiều cao tổng thể | 80mm |
| Chiều sâu tổng thể | 77mm |
| Cấp bảo vệ | IP20 |
| Tiêu chuẩn | EN 60947, EN/IEC 60947-5-1
|
