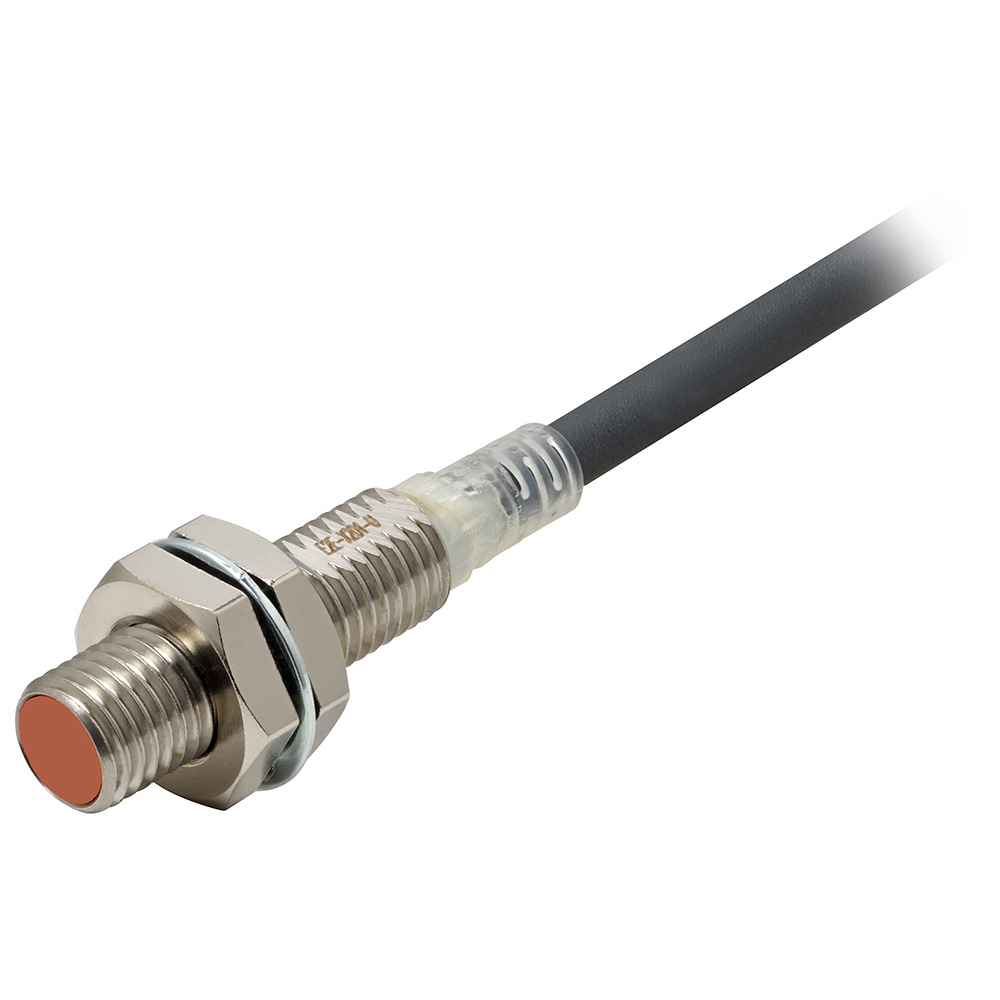

Cảm biến tiệm cận Omron E2E-X2D2-U 2M

Cảm biến tiệm cận  Omron E2E-X2D2-U 2M
Proximity Sensor
Cylinder type (with screw)
Sensing distance: 2 mm
Shielded
DC 2-wire
NC
Pre-wired model
Polarity
Polyurethane cable (oil resistant and reinforced)
2 m

Mua Ngay : Zalo

nhà chế tạo: Omron
SKU: E2E-X2D2-U 2M
Ngày giao hàng: 1-3 days
Giá cũ: 1.720.105 ₫
1.433.421 ₫
Giao đến
*
*
Phương pháp vận chuyển
Tên
Ngày dự kiến giao hàng
Giá bán
Không có tùy chọn giao hàng nào

Thông Tin Sản Phẩm: E2E-X2D2-U 2M

Thông Tin Kỹ Thuật cơ bản của : Cảm biến tiệm cận Omron E2E-X2F15 2M

Sensing head size M8
Type Cylinder type (with screw), Shielded
Power source DC 2-wire models
Sensing distance 2 mm ±10%
Setting distance 0 to 1.6 mm
Operation mode NC

Thông số kỹ thuật chi tiết sản phẩm: Cảm biến tiệm cận Omron E2E-X2F15 2M

Sensing head sizeM8
TypeCylinder type (with screw), Shielded
Power sourceDC 2-wire models
Sensing distance2 mm ±10%
Setting distance0 to 1.6 mm
Differential distance15% max. of sensing distance
Sensing objectFerrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing objectIron 8 x 8 x 1 mm
Response frequency1500 Hz
Power supply voltage12 to 24 VDC ripple (p-p) 10% max.
Operating voltage range10 to 30 VDC
Leakage current0.8 mA max.
Control output (Switching capacity)3 to 100 mA
Control output (Residual voltage)3 V max. (Load current 100 mA with cable length of 2 m)
IndicatorOperation indicator (red)
Operation modeNC
PolarityPolarity
Protective circuitOutput short-cut protectionSurge suppressor
Ambient temperature (Operating)-25 to 70 ℃(with no freezing or condensation)
Ambient temperature (Storage)-40 to 85 ℃(with no freezing or condensation)
Ambient humidity (Operating)35 to 95 % (with no condensation)
Ambient humidity (Storage)35 to 95 % (with no condensation)
Temperature influence±15% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃
Voltage influence±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistanceBetween charged parts and the case: 50 MΩ min. at 500 VDC
Dielectric strengthBetween charged parts and the case: 1,000 VAC 50/60 Hz 1 min
Vibration resistanceDestruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistanceDestruction: 500 m/s2 10 times each in X, Y, and Z directions
Degree of protectionIEC: IP67Company standard: Oil-proof
Connection methodPre-wired models (2 m)
MaterialCase: Stainless steel (SUS303)Sensing surface: Polybutylene terephthalate (PBT)Cable: PVCClamping nuts: Brass nickel platingToothed washers: Iron zinc plating
AccessoriesInstruction manual, Clamping nuts, Toothed washers
