Timer Omron H5CX-BWSD-N

Timer  Omron H5CX-BWSD-N
Digital Timer
Six-digit Type
2 tiers
Transistor output
24 VAC/12 to 24 VDC
Terminal block models

Mua Ngay : Zalo

nhà chế tạo: Omron
SKU: H5CX-BWSD-N
Ngày giao hàng: 1-3 days
670 ₫
Giao đến
*
*
Phương pháp vận chuyển
Tên
Ngày dự kiến giao hàng
Giá bán
Không có tùy chọn giao hàng nào

Thông Tin Sản Phẩm: H5CX-BWSD-N

Thông Tin Kỹ Thuật cơ bản của : Timer Omron H5CX-L8D-N

Rated supply voltage 12 to 24 VDC
Time range 0.01 s to 99999.9 h
Input method No-voltage (NPN)/Voltage (PNP) input (selectable)
Display mode Elapsed time (UP)
Display method 7-segment negative transmissive LCD 6 digit
External connection method Screw terminal

Thông số kỹ thuật chi tiết sản phẩm: Timer Omron H5CX-L8D-N

Rated supply voltage12 to 24 VDC (Ripple 20% max.)
Operating voltage range90 to 110% of rated supply voltage
Power consumptionApprox. 2.3 W
Time ranges（Number of ranges）4
Time ranges0.01 to 9999.99 s0.1 to 99999.9 min0.1 to 99999.9 h1 s to 99 h 59 min 59 s
Input methodNo-voltage (NPN)/Voltage (PNP) input (selectable)
No-voltage inputSolid state inputShort-circuit (ON) impedance: 1 kΩ max. (Leakage current (0 Ω): Approx. 12 mA)Short-circuit (ON) residual voltage: 3 V max.Open circuit impedance: 100 kΩ min.(The DC voltage must be 30 VDC max.)
Contact inputUse contact which can adequately switch 5 mA at 10 V
Applicable two-wire sensorLeakage current: 1.5 mA max.Switching capacities: 5 mA min.Residual voltage: 3.0 VDC max.Operating voltage: 10 VDC
Voltage inputHigh level: 4.5 to 30 VDCLow level: 0 to 2 VDC (Input resistance 4.7 kΩ)
Output modesA: Signal ON delayF-1: Cumulative

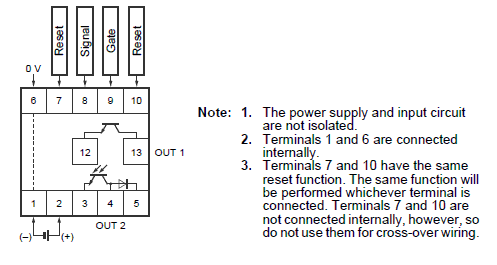

Control output （Solid state output）2 point (Transistor output）Mode: NPN open collector (DPST-NO)Switching capacities: 30 VDC max., 100 mA max.Residual voltage: 1.5 V max. (Capacity value: Approx. 1 V)Leakage current: 0.1 mA max.
Reset systemPower reset (A mode)/External reset/Manual reset
Power resetMinimum power-opening time: 0.5 s (except for F-1 mode)
Timer modeElapsed time (UP)
Display method7-segment negative transmissive LCD 6 digit
Character heightPresent value: 10 mm (Red)Set value: 6 mm (green)
Key protect methodKey protect Switch
Memory backup methodEEP-ROM (number of writes: 100,000 min., that can store data for 10 years min.)
Ambient temperature (Operating)-10 to 55 ℃ (with no freezing or condensation)When mount timer side by side: -10 to 50 ℃ (with no freezing or condensation)
Ambient temperature (Storage)-25 to 70 ℃ (with no freezing or condensation)
Ambient humidity (Operating)25 to 85 %
Accuracy of operating timePower-ON start: ±0.01% ±0.05 s max. (The values are based on the set value.)Signal start: ±0.005% ±3 ms max. (The values are based on the set value. The value is applied for a minimum pulse width of 1 ms.)
Setting errorPower-ON start: ±0.01% ±0.05 s max. (The values are based on the set value.)Signal start: ±0.005% ±3 ms max. (The values are based on the set value. The value is applied for a minimum pulse width of 1 ms.)
Influence of voltagePower-ON start: ±0.01% ±0.05 s max. (The values are based on the set value.)Signal start: ±0.005% ±3 ms max. (The values are based on the set value. The value is applied for a minimum pulse width of 1 ms.)
Influence of temperaturePower-ON start: ±0.01% ±0.05 s max. (The values are based on the set value.)Signal start: ±0.005% ±3 ms max. (The values are based on the set value. The value is applied for a minimum pulse width of 1 ms.)
Insulation resistanceBetween current carrying terminals and exposed non-current carrying metal parts: 100 MΩ min. (at 500 VDC)
Dielectric strengthBetween current carrying metal parts and non-current carrying metal parts: 2000 VAC 50/60 Hz 1 minBetween control output, and power supply/input circuit: 1000 VAC 50/60 Hz 1 minBetween non-continuous contacts: 1000 VAC 50/60 Hz 1 min
Impulse withstand voltageBetween power terminals: 1.0 kVBetween current carrying terminals and exposed non-current carrying metal parts: 1.5 kV
Noise immunityBetween power terminals: ±480 kVBetween input terminals: ±600 kVsquare-wave noise by noise simulator, pulse width: 100 ns/1 µs, 1-ns rise
Static immunityMulfunction: 8 kV, Destruction: 15 kV
Vibration resistanceDestruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 2 hMalfunction: 10 to 55 Hz 0.35 mm single amplitude each in 3 directions for 10 min
Shock resistanceDestruction: 300 m/s2, 3 times each in 3 axes each directionsMalfunction: 100 m/s2, 3 times each in 6 directions
Degree of protectionOnly panel surface: IEC IP66, UL508 Type 4X (indoors) (when using the Y92S-29 Waterproof Packing and Y92F-30 Flush Mounting Adapter)

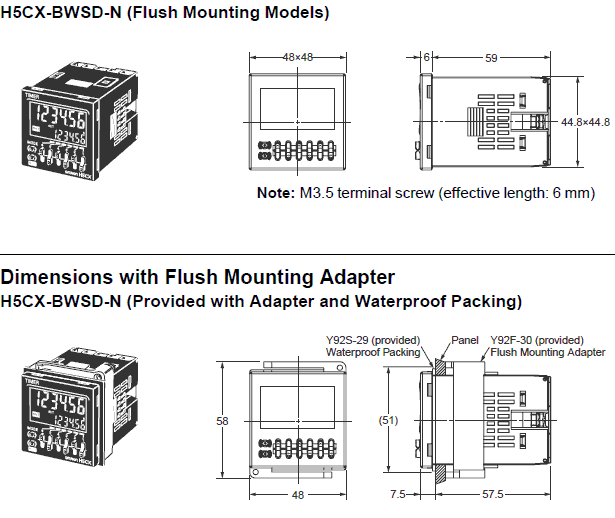

Mounting methodFlush mounting
External connection methodScrew terminal
Case colorBlack (Munsell N1.5)
AttachmentFlush mounting adapter, waterproof packing, terminal covers
Accessory (sold separately)Soft Cover: Y92A-48F1Hard Cover: Y92A-48Flush mounting adapter: Y92F-30/Y92F-45/Y92F-38Waterproof packing: Y92S-29Replacement Front Panel: Y92P-CXT4S/Y92P-CXT4G/Y92P-CXT4B
WeightMain Unit: Approx. 105 g
