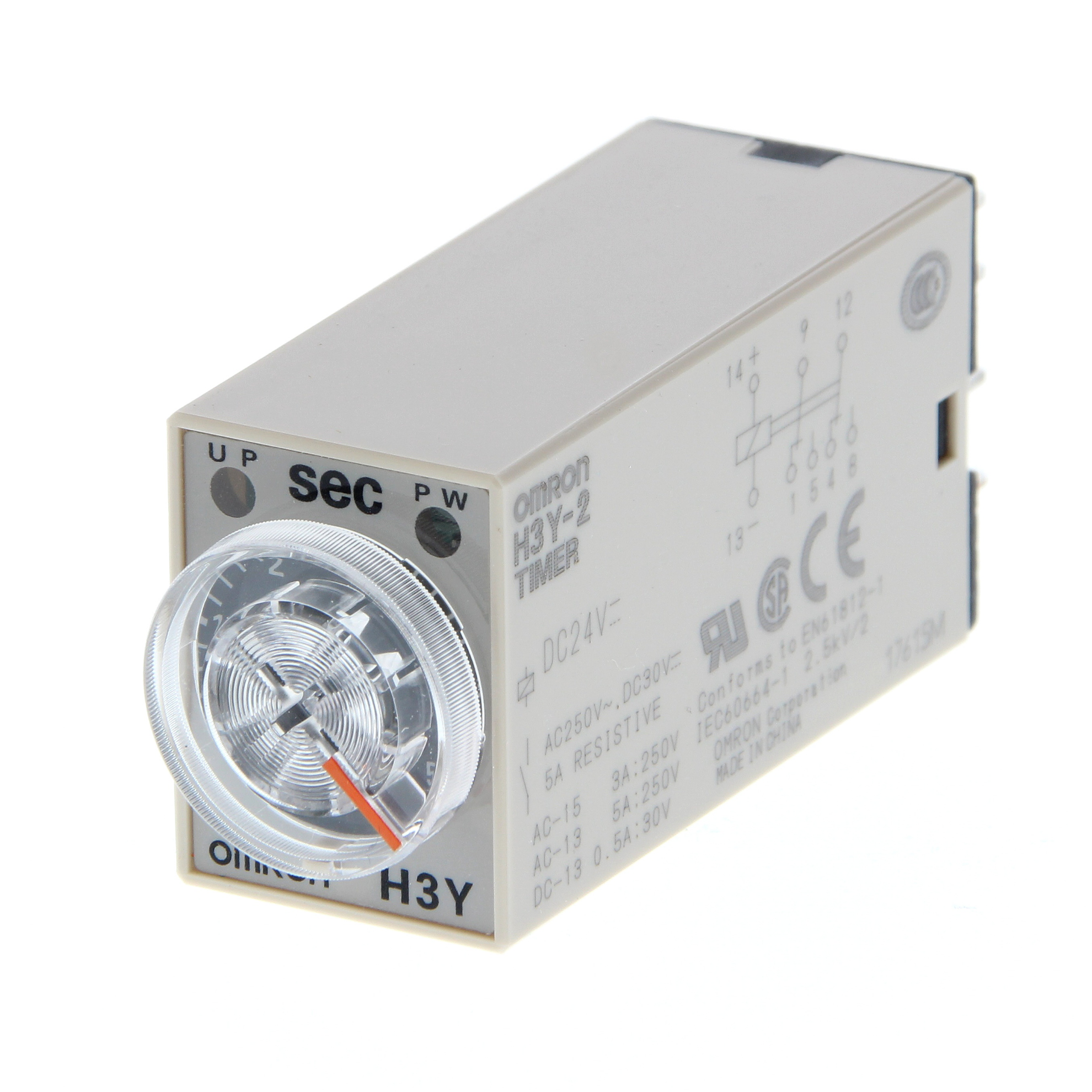

Timer Omron H3Y-2-0 AC200-230 60S

2...60s
200...230VAC
Đầu ra trễ: DPDT
Chế độ hoạt động: ON delay
Thời gian hoạt động: Power ON start

nhà chế tạo: Omron

SKU: H3Y-2-0 AC200-230 60S

Tải xuống mẫu

Giá cũ: 1.533.300 ₫

Giá bán: 1.226.640 ₫

Thông tin chi tiết của: Timer Omron H3Y-2-0 AC200-230 60S

Thông số kỹ thuật cơ bản của: H3Y-2-0 AC200-230 60S

Rated power supply voltage	200 to 230 VAC 50/60 Hz
Control output (Type)	Time-limit: DPDT
Operating resetting	Time-limit operation/Self-reset
Connecting method	PCB terminal

Thông số kỹ thuật chi tiết của: H3Y-2-0 AC200-230 60S

Model	H3Y-2-0 AC200-230 60S
Rated power supply voltage	200 to 230 VAC 50/60 Hz
Allowable voltage variable range	85 to 110% of the power supply voltage
Power consumption	Approx. 1.8 VA (at 230 VAC)
Reset voltage	10% min, of rated supply voltage
Number of time ranges	1
Operation mode	Power ON-delay
Control output (Type)	Time-limit: DPDT
Control output (Contact output)	Resistive load: 250 VAC 5 A (cosφ=1)Minimum applicable load: 1 mA at 5 VDC (failure level: P)
Operating resetting	Time-limit operation/Self-reset
Ambient temperature range	Operating: -10 to 50 ℃ (with no icing)Storage: -25 to 65 ℃ (with no icing)
Ambient humidity range	Operating: 35 to 85 %
Accuracy of operating time	±1% FS max.
Setting error	±10% FS ±50 ms max.
Reset time	0.1 s max. (including halfway reset)
Influence of voltage	±2% FS max.
Influence of temperature	±2% FS max.
Insulation resistance	100 MΩ min. (at 500 VDC)
Dielectric strength	Between current carrying terminals and exposed non-current carrying metal parts: 2000 VAC 50/60 Hz 1 min (Terminal screw sections are not excluded)Between operating power circuit and control output: 2,000 VAC 50/60 Hz 1 minBetween contacts of different polarity: 2,000 VAC 50/60 Hz 1 minBetween non-continuous contacts: 1,000 VAC 50/60 Hz 1 min
Impulse withstand voltage	Between power terminals: 3 kVBetween current carrying terminals and exposed non-current carrying metal parts: 4.5 kV
Noise immunity	±1.5 kV square-wave noise by noise simulator (pulse width: 100 ns/1 µs, 1-ns rise)
Static immunity	Mulfunction: 4 kV, Destruction: 8 kV
Vibration resistance	Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 1 hourMalfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min
Shock resistance	Destruction: 1,000 m/s², 3 times each in 6 directionsMalfunction: 100 m/s², 3 times each in 6 directions
Life expectancy (relay output)	Electrical: 500,000 operations min. (5 A at 250 VAC, resistive load at 1,800 operations/h, Room temperature)Mechanical: 10 million operations min. (under no load at 1,800 operations/h)
Degree of protection	IP40
Connecting method	PCB terminal
Case color	Beige
Weight	Approx. 50 g
