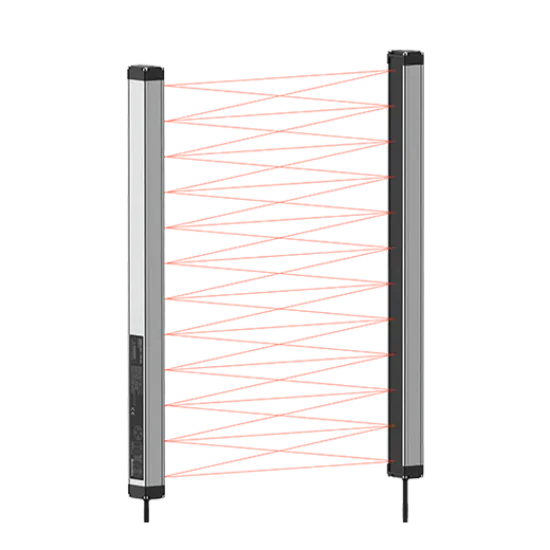

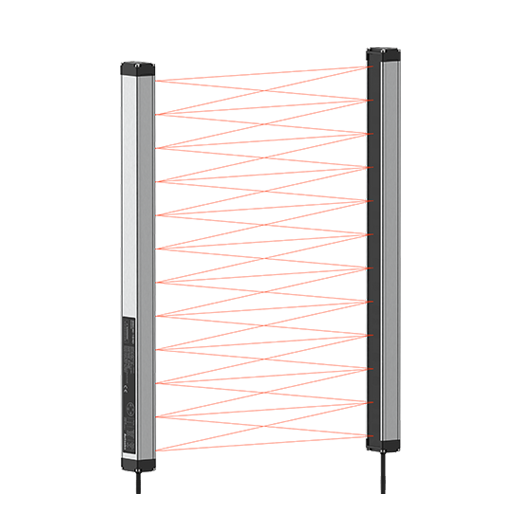

aut.vn Cảm biến vùng Autonics BWC40-04H

aut.vn Cảm biến vùng Autonics BWC40-04H

Sensing type : Through-beam type(cross beam)
Sensing distance : 1 to 7m
Light source : Infrared LED(850nm modulated)
Optical axis pitch : 40mm
Number of optical axes : 4
Power supply : 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Control output : NPN open collector
Operation mode : Light ON
nhà chế tạo: Autonics
SKU: BWC40-04H
Ngày giao hàng: 3-5 days
6.963.000 ₫
Giá trị của bạn: 4.177.800 ₫
Giao đến
*
*
Phương pháp vận chuyển
Tên
Ngày dự kiến giao hàng
Giá bán
Không có tùy chọn giao hàng nào
Sensing type : Through-beam type(cross beam)
Sensing distance : 1 to 7m
Light source : Infrared LED(850nm modulated)
Optical axis pitch : 40mm
Number of optical axes : 4
Sensing height : 120mm
Power supply : 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Control output : NPN open collector
Operation mode : Light ON
Environment_Ambient illumination : Ambient light: Max. 100,000lx(receiver illumination)
Environment_Ambient temperature : -10 to 55℃, storage: -20 to 60℃
Connection type : Cable connector type(Ø5, 300mm, M12)
Protection structure : IP67(IEC standard)
Environment_Ambient humidity : 35 to 85% RH, storage: 35 to 85% RH
Min. sensing target : Opaque material of min. Ø50mm
Response time : Max. 50ms
Material : Case: Aluminum, Sensing part and indicator: Acrylic
Cable specification : Ø5mm, 4-wire, 300mm, M12 connector
Accessories : Bracket A: 4, Bracket B: 4, Fixing bolt: 8
Weight : Approx. 2.1kg(approx. 1.7kg)(based on BWC80-14H)
