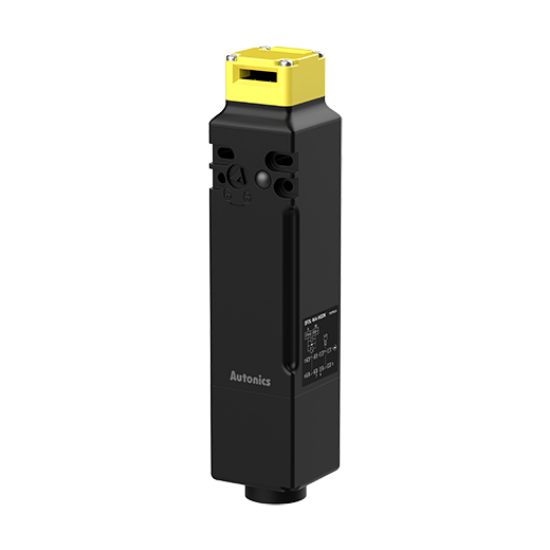

AUT.VN Công tắc an toàn Autonics SFDL-S5C-G1/2K
Directing opening force : Min. 80N
Directing opening distance : Min. 10mm
Locking pullout strength : Min. 1,300N
Operating speed : 0.05 to 1m/s
Operating frequency : Max. 20/min
Life cycle_Mechanical : Min. 1,000,000 operations (20/min)
Vibration_Malfunction : 0.35mm single amplitude at frequency of 10 to 55Hzin each X,Y,Z direction for 10 min
Shock : 1,000m/s² (approx. 100G) in each X, Y, Z direction for 3 times
Shock_Malfunction : 1,000m/s² (approx. 100G) in each X, Y, Z direction for 3 times
Environment_Ambient temperature : -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity : 35 to 85% RH, storage: 35 to 85% RH
Protection structure : IP67(IEC standerd, except head)
Applicable cable : AWG22
Material : Head: zinc, case: polyamide 66, operation key: stainless steel 304
Sold separately : Operation key
Weight : Approx. 440g(approx. 375g)
Rated load voltage & current : Resistive load : 1A/120VAC~, 0.22A/125VDC@(=)
Inductive load : AC-15 1A/120VAC~, DC-13 0.22A/125VDC@(=)
Dielectric strength_Between the terminals of same polarity : 1.5kV
Dielectric strength_Between the terminals of different polarity : 1.5kV
Dielectric strength_Between each terminal and non-live part : 2.5kV
Insulation resistance : 100MΩ or more (500VDC megger basis)
Contact resistance : Max. 200mΩ
Life cycle_Electrical : Min. 100,000 operations (125VAC~/1A)
Conditional short circuit current : 100A
Rated voltage : 24VDC@(=)
Current consumption : Supplying power: 0.26A
Normal: max. 0.2A (approx. 3 seconds after supplying power)
Insulation class : Class E
