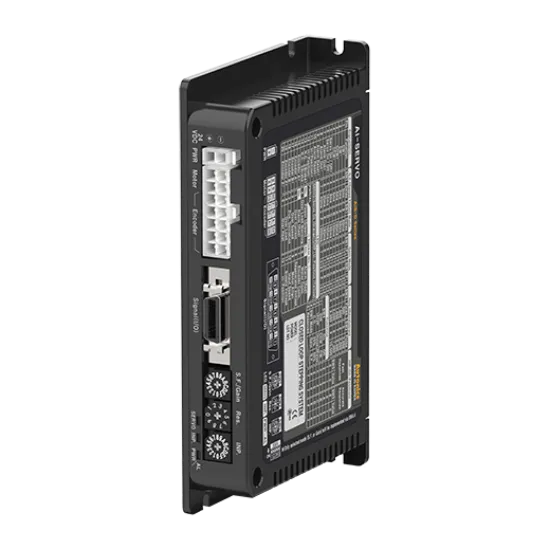

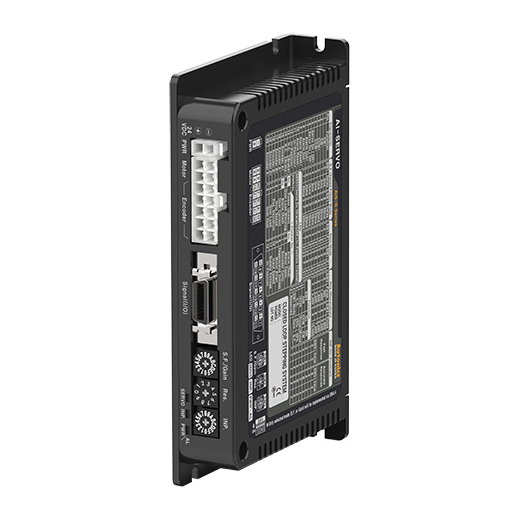

aut.vn Động cơ bước 2 pha vòng kính Autonics AiS-D-56MA
aut.vn Động cơ bước 2 pha vòng kính Autonics AiS-D-56MA
Driver_Operation Method : Bipolar constant current Drive
Driver_Applied Motor : Frame size 56mm 2-phase closed loop stepper motor
Driver_Resolution : 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000 PPR (selectable by SW2)
Driver_Power supply : 24VDC @(=)
Driver_Max. Run Current : 3.5A/Phase
4.963.000 ₫
Giá trị của bạn: 2.977.800 ₫
Driver_Operation Method : Bipolar constant current Drive
Driver_Applied Motor : Frame size 56mm 2-phase closed loop stepper motor
Driver_Resolution : 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000 PPR (selectable by SW2)
Driver_Power supply : 24VDC @(=)
Driver_Max. Run Current : 3.5A/Phase
Driver_Max. Power consumption : 120W
Driver_Output : In-Position, Alarm Out, Encoder signal (A, @(A^), B, @(B^), Z, @(Z^))
Driver_Protection structure : IP20
Driver_Approval : @(CE)
Motor phase : 2-Phase
Driver_Environment_Ambient temperature : 0 to 50℃, storage: -10 to 60℃
Driver_Environment_Ambient humidity : 35 to 85%RH, storage: 10 to 90%RH
Driver_Weight : Approx. 400g(approx. 290g)
Motor_Number Of Axes : 1-axis
