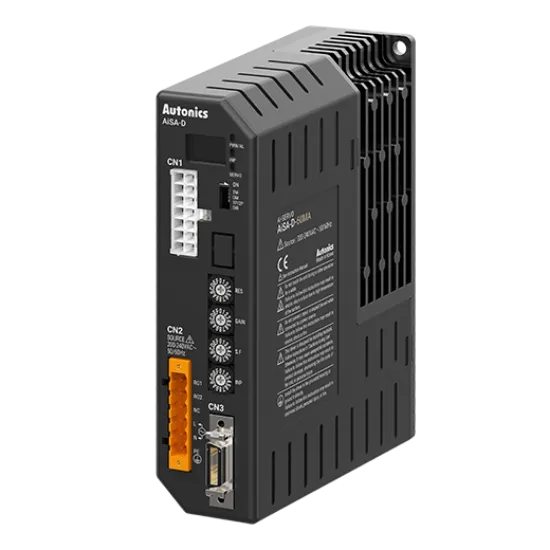

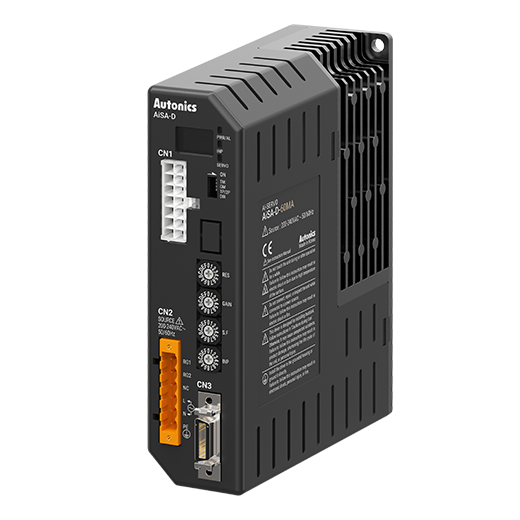

aut.vn Động cơ bước 2 pha vòng kính Autonics AiSA-D-60LA
aut.vn Động cơ bước 2 pha vòng kính Autonics AiSA-D-60LA
Driver_Operation Method : Bipolar constant current Drive
Driver_Applied Motor : Frame size 60mm 2-phase closed loop stepper motor
Driver_Resolution : 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000 PPR(SW2)
Driver_Power supply : 200-240VAC~
9.330.000 ₫
Giá trị của bạn: 5.598.000 ₫
Driver_Operation Method : Bipolar constant current Drive
Driver_Applied Motor : Frame size 60mm 2-phase closed loop stepper motor
Driver_Resolution : 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000 PPR(SW2)
Driver_Power supply : 200-240VAC~
Driver_Max. Run Current : 2A/Phase
Driver_Output : In-Position, Alarm Out, Encoder signal (A, @(A^), B, @(B^), Z, @(Z^))
Driver_Protection structure : IP20
Driver_Approval : @(CE)
Driver_Environment_Ambient temperature : 0 to 50℃, storage: -10 to 60℃
Driver_Environment_Ambient humidity : 35 to 85%RH, storage: 10 to 90%RH
Driver_Weight : Approx. 900g (approx. 780g)
