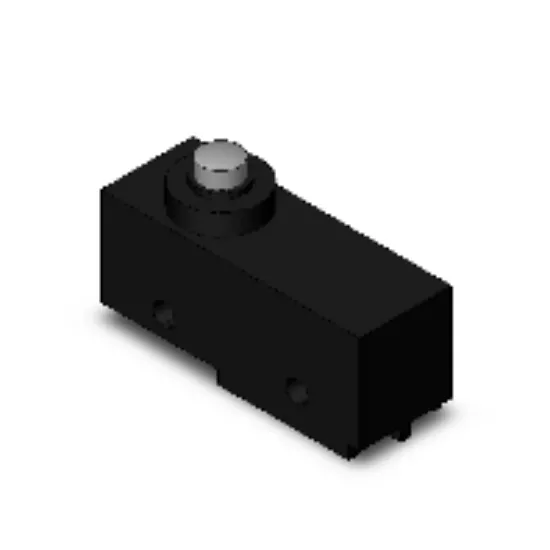

aut.vn Công tắc hành trình Limit Switch Omron Z-15GD55

Actuator : Short spring plunger
Contact form : SPDT
Terminal : Solder terminal
Rated current : 15 A
Degree of protection : Equivalent to IP62 (excluding the terminals on terminal models)
Actuator : Short spring plunger 7.15 dia.
Stainless-steel plunger
Contact form : SPDT
Rivet
Ag
Contact gap (standard value) : 0.5 mm
Terminal : Solder terminal
Load : General load
Rated current : 15 A
Ratings (AC) Non-Inductive load : Resistive load: 15 A at 125 VAC, 15 A at 250 VAC, 10 A at 500 VAC
Lamp load (NC): 3 A at 125 VAC, 2.5 A at 250 VAC, 1.5 A at 500 VAC
Lamp load (NO): 1.5 A at 125 VAC, 1.25 A at 250 VAC, 0.75 A at 500 VAC
Inductive load: 15 A at 125 VAC, 15 A at 250 VAC, 6 A at 500 VAC
Motor load (NC): 5 A at 125 VAC, 3 A at 250 VAC, 1.5 A at 500 VAC
Motor load (NO): 2.5 A at 125 VAC, 1.5 A at 250 VAC, 0.75 A at 500 VAC
Ratings (DC) Non-Inductive load : Resistive load: 15 A at 8 VDC, 15 A at 14 VDC, 6 A at 30 VDC, 0.5 A at 125 VDC, 0.25 A at 250 VDC
Lamp load (NC): 3 A at 8 VDC, 3 A at 14 VDC, 3 A at 30 VDC, 0.5 A at 125 VDC, 0.25 A at 250 VDC
Lamp load (NO): 1.5 A at 8 VDC, 1.5 A at 14 VDC, 1.5 A at 30 VDC, 0.5 A at 125 VDC, 0.25 A at 250 VDC
Inductive load: 15 A at 8 VDC, 10 A at 14 VDC, 5 A at 30 VDC, 0.05 A at 125 VDC, 0.03 A at 250 VDC
Motor load (NC): 5 A at 8 VDC, 5 A at 14 VDC, 5 A at 30 VDC, 0.05 A at 125 VDC, 0.03 A at 250 VDC
Motor load (NO): 2.5 A at 8 VDC, 2.5 A at 14 VDC, 2.5 A at 30 VDC, 0.05 A at 125 VDC, 0.03 A at 250 VDC
Inrush current : NC: 30 A max.
NO: 15 A max.
Ambient temperature : -15 to 80 ℃ (with no icing)
Ambient humidity : 35 to 95 %
Speed of permissible operation : 0.01 mm/s to 1 m/s
Permissible operating frequency : Electrical: 20 operations / 1 minute max.
Mechanical: 240 operations / 1 minute max.
Contact resistance (Initial value) : 15 mΩ max.
Insulation resistance : 100 MΩ min. (at 500 VDC)
Dielectric strength : Between each terminal of the same polarities: 1,000 VAC 50/60 Hz 1 min
Between live-metallic part and ground: 2,000 VAC 50/60 Hz 1 min
Between each terminal and non-live-metallic part: 2,000 VAC 50/60 Hz 1 min
Durability : Electrical: 500,000 operations min.
Mechanical: 10 million operations min.
Degree of protection : Drip-proof type Equivalent to IP62 (excluding the terminals on terminal models)
Degree of protection against electric shock : Class I
Proof tracking index(PTI) : 175
: Malfunction: 10 to 55 Hz, 1.5 mm double amplitude (Malfunction: 1 ms max.)
: Destruction: 1000 m/s2
Operating Force （OF） : Standard value 5.3 N max.
Release Force （RF） : Standard value 1.12 N min.
Pre-Travel （PT） : Standard value 1.8 mm max.
Over-Travel （OT） : Standard value 1.6 mm min.
Movement Differential （MD） : Standard value 0.06 mm max.
Operating Position （OP） : Standard value 21 to 22 mm
