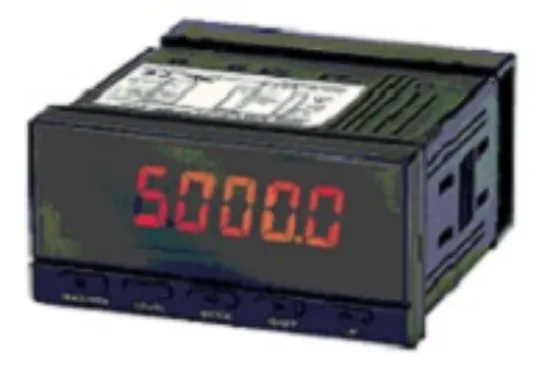

aut.vn Đồng hồ đo đa năng Omron K3MA-F AC/DC24

aut.vn Đồng hồ đo đa năng Omron K3MA-F AC/DC24
Frequency/Rate Meter
Rotary pulse input
Without comparative output
24 VAC/VDC



Mua Ngay : Zalo

nhà chế tạo: Omron
SKU: K3MA-F AC/DC24
Ngày giao hàng: 3-5 days
Giá cũ: 1.000 ₫
100 ₫
Giao đến
*
*
Phương pháp vận chuyển
Tên
Ngày dự kiến giao hàng
Giá bán
Không có tùy chọn giao hàng nào
aut.vn Đồng hồ đo đa năng Omron K3MA-F AC/DC24

Power supply voltage : 24 VDC
24 VAC 50/60 Hz
Input type : Rotary pulse (No-voltage contact/NPN/PNP/Voltage pulse)
Digits : 5 digit (-19999 to 99999)
Power supply voltage : 24 VDC
24 VAC 50/60 Hz
Allowable power supply voltage range : 85 to 110% of the power supply voltage
Power consumption : 4.5 W max. (at 24 VDC)/4.5 VA max. (at 24 VAC)
External power supply : 12 VDC ±10% 0 to 40 mA
Input type : Rotary pulse (No-voltage contact/NPN/PNP/Voltage pulse)
Pulse measurement input : No-voltage contact : 30 Hz max. ON/OFF pulse width of 15 ms min.
Voltage pulse : 5 kHz max. ON/OFF pulse width of 90 µs min.
Voltage level : ON voltage: 4.5 to 30 V, OFF voltage: 0 to 2 V, input impedance: 10 kΩ
Open collector : 5 kHz max. ON/OFF pulse width of 90 µs min.
Measurement range : 30 Hz: 0.05 to 30.00 Hz
5 kHz: 0.05 to 5000 Hz
Accuracy : ±0.1% FS ±1 digit max.
(23±5 ℃)
Display : Display method : Negative LCD (backlit LED) 7-segment digital display
Digits : 5 digit (-19999 to 99999)
Character height : 14.2 mm (green/red)
Comparative output response time : 750 ms max.
Insulation resistance : Between the entire external terminal and case: 20 MΩ min. (at 500 VDC)
Between inputs, outputs, and power supply: 20 MΩ min. (at 500 VDC)
Dielectric strength : Between the entire external terminal and case: 2,000 VAC 1 min
Noise immunity : ±480 V at power supply terminals in normal mode ±1,500 V at power supply terminals in common mode (waveform with 1-ns rising edge and pulse width of 1 µs/100 ns)
Vibration resistance : Malfunction: 10 to 55 Hz, Single amplitude 0.35 mm, 10 sweeps of 5 min each in X, Y, and Z directions
Shock resistance : Malfunction: 150 m/s2, 3 times each in 3 axes 6 directions
Degree of protection : Front: NEMA TYPE 4X for indoor use (equivalent to IP66)
Case rear: IP20
Terminals: IP00 + finger protection (VDE0106/100) with terminal Cover
Memory protection : Non-volatile memory (Number of rewrites: 100,000)
Ambient temperature : Operating: -10 to 55 ℃ (with no freezing or condensation)
Storage: -25 to 65 ℃ (with no freezing or condensation)
Ambient humidity : Operating: 25 to 85 % (with no condensation)
Accessories : Waterproof packing, Terminal Cover, Unit label
Weight : Approx. 220 g
