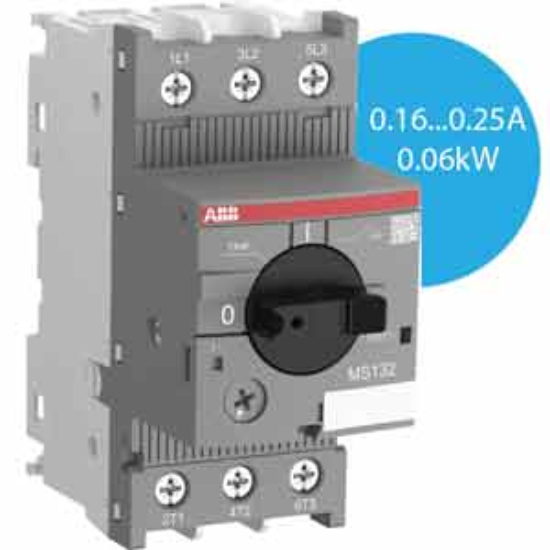

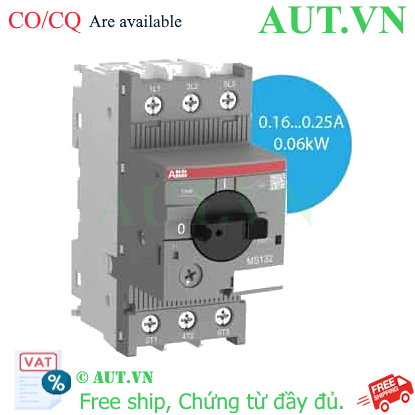

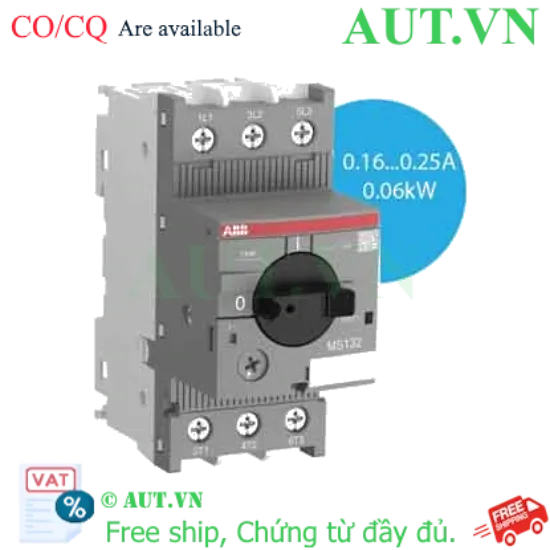

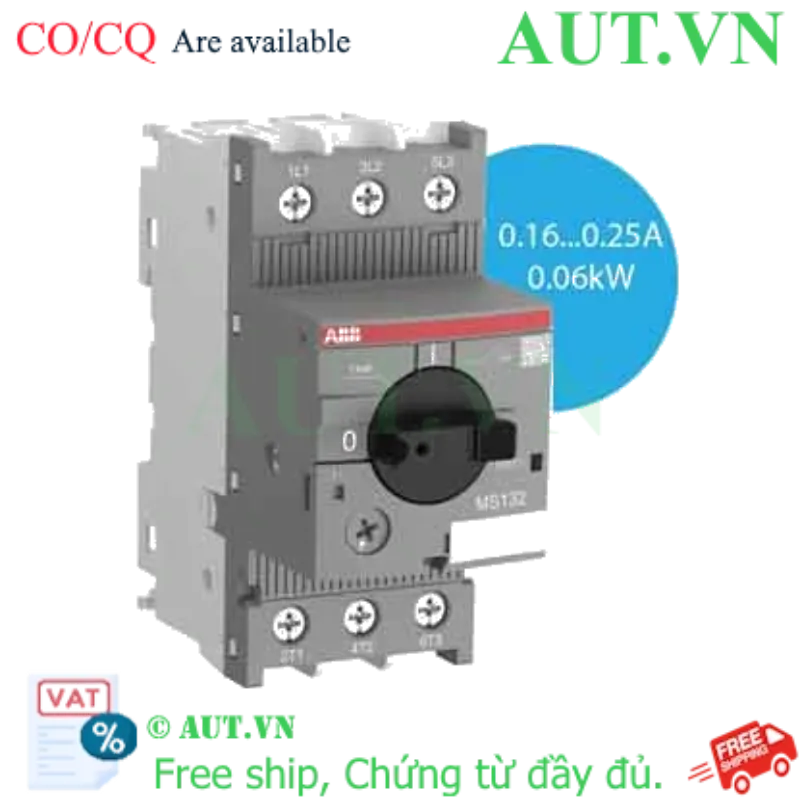

| Model | 1SAM350000R1002 (MS132-0.25) |
| Số cực | 3P |
| Bảo vệ quá tải (In) | 0.16...0.25A |
| Công suất động cơ (400 VAC) | 0.06kW |
| Bảo vệ ngắn mạch | 100kA |

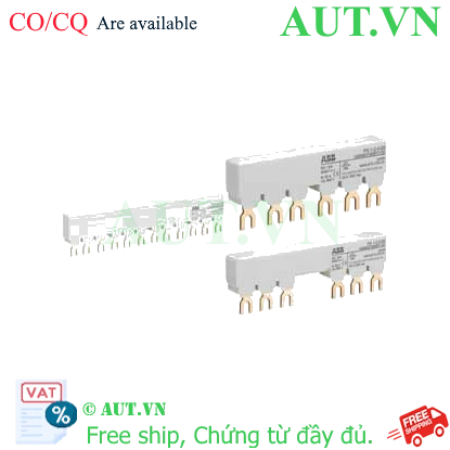

| Phụ kiện mua rời | Busbar: 1SAM201906R1102 (PS1-2-0-65), Busbar: 1SAM201906R1112 (PS1-2-1 -65), Busbar: 1SAM201906R1103 (PS1-3-0-65), Busbar: 1SAM201906R1104 (PS1-4-0-65), Busbar: 1SAM201906R1105 (PS1-5-0-65), Busbar: 1SAM201906R1113 (PS1-3-1-65), Busbar: 1SAM201906R1114 (PS1-4-1-65), Busbar: 1SAM201906R1115 (PS1-5-1-65), Busbar: 1SAM201906R1122 (PS1-2-2-65), Busbar: 1SAM201906R1123 (PS1-3-2-65), Busbar: 1SAM201906R1124 (PS1-4-2-65), Busbar: 1SAM201906R1125 (PS1-5-2-65), Busbar: 1SAM201916R1103 (PS1-3-0-100), Busbar: 1SAM201916R1104 (PS1-4-0-100), Busbar: 1SAM201916R1105 (PS1-5-0-100), Busbar: 1SAM201916R1113 (PS1-3-1-100), Busbar: 1SAM201916R1114 (PS1-4-1-100), Busbar: 1SAM201916R1115 (PS1-5-1-100), Power infeed: 1SAM201907R1101 (S1-M1-25), Power infeed: 1SAM201907R1102 (S1-M2-25), Power infeed: 1SAM201907R1103 (S1-M3-25), Power infeed: 1SAM201913R1103 (S1-M3-35), Protection cover: 1SAM201908R1001 (BS1-3), Screw fixing kit: 1SAM201909R1001 (FS116), Phase connecting link: 1SAM201914R1001 (PB1-1-32), Enclosure: 1SAM201911R1010 (IB132-G), Enclosure: 1SAM201911R1011 (IB132-Y), Enclosure: 1SAM201911R1012 (IB132-F), Door mounting kit: 1SAM201912R1010 (DMS132-G), Door mounting kit: 1SAM201912R1011 (DMS132-Y), Shaft supporter: 1SAM201909R1021 (MSAH1), Driver screw: 1SAM101923R0002 (MSMN), Driver without screw: 1SAM101923R0012 (MSMNO), Shaft: 1SCA101647R1001 (OXS6X85), Shaft: 1SCA108043R1001 (OXS6X105), Shaft: 1SCA101655R1001 (OXS6X130), Shaft: 1SCA101659R1001 (OXS6X180), Terminal spacer: 1SAM301911R1001 (TS1-M3-S1), Terminal spacer: 1SAM301912R1001 (S1-M3-S2), DIN-rail: HYBT-01, DIN-rail: PFP-100N, DIN-rail: TC 5x35x1000-Aluminium, DIN-rail: TC 5x35x1000-Steel, Stopper: BIZ-07, Stopper: BNL6, Chặn cầu đấu, bằng sắt: HYBT-07 [...] |
| Loại | Bộ ngắt mạch động cơ |
| Dùng cho lưới điện | AC |
| Điện áp định mức (Ue) | 690VAC |
| Tần số | 50/60Hz |
| Điều chỉnh dòng điện | Có |
| Dòng ngắn mạch định mức | 100kA at 400VAC |
| Công suất ngắt - Ics (% Icu) | 100% |
| Loại điều khiển On/Off | Quay trực tiếp bằng tay |
| Phương pháp lắp đặt | Lắp thanh ray DIN |
| Kiểu kết nối | Bắt vít |
| Khối lượng tương đối | 215g |
| Chiều rộng tổng thể | 45mm |
| Chiều cao tổng thể | 90mm |
| Chiều sâu tổng thể | 86.75mm |
| Cấp độ bảo vệ | IP10, IP20 |
| Tiêu chuẩn | IEC/EN 60947-2, IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947 -4-1 [...] |
| Cuộn cắt (Bán riêng) | 1SAM201910R1001 (AA1-24), 1SAM201910R1002 (AA1-110), 1SAM201910R1003 ( AA1-230), 1SAM201910R1004 (AA1-400) [...] |
| Cuộn bảo vệ thấp/quá áp (Bán riêng) | 1SAM201904R1001 (UA1-24), 1SAM201904R1002 (UA1-48), 1SAM201904R1003 (U A1-60), 1SAM201904R1004 (UA1-110), 1SAM201904R1005 (UA1-230), 1SAM201904R1006 (UA1-400), 1SAM201904R1007 (UA1-415), 1SAM201904R1008 (UA1-208), 1SAM201904R1009 (UA1-575), 1SAM201904R1010 (UA1-20) [...] |
| Tiếp điểm phụ (Bán riêng) | 1SAM201902R1003 (HK1-02), 1SAM201902R1203 (HK1-02K), 1SAM201902R1004 ( HK1-20L), 1SAM201902R1204 (HK1-20LK), 1SAM201901R1003 (HKF1-10), 1SAM201902R1002 (HK1-20), 1SAM201902R1202 (HK1-20K), 1SAM201902R1001 (HK1-11), 1SAM201902R1201 (HK1-11K), 1SAM201901R1001 (HKF1-11), 1SAM201901R1201 (HKF11-11K), 1SAM201901R1002 (HKF1-20), 1SAM201901R1202 (HKF1-20K), 1SAM201901R1004 (HKF1-01) [...] |
| Tiếp điểm cảnh báo (Bán riêng) | 1SAM201903R1202 (SK1-20K), 1SAM201903R1005 (SK1-20AR), 1SAM201903R1205 (SK1-20ARK), 1SAM201903R1001 (SK1-11), 1SAM201903R1201 (SK1-11K), 1SAM201903R1004 (SK1-11AR), 1SAM201903R1204 (SK1-11ARK), 1SAM201903R1003 (SK1-02), 1SAM201903R1203 (SK1-02K), 1SAM201903R1006 (SK1-02AR), 1SAM201903R1206 (SK1-02ARK), 1SAM301901R1002 (CK1-20), 1SAM301901R1001 (CK1-11), 1SAM301901R1003 (CK1-02), 1SAM201903R1002 (SK1-20) [...] |
| Tay xoay (Bán riêng) | 1SAM201920R1011 (MSHD-LTB), 1SAM201920R1012 (MSHD-LTY) |
