Cảm biến áp suất

Cảm biến áp suất Autonics PSQ-BC1U-R1/8

Applicable fluid : (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
Pressure port direction : Rear fitting
Pressure port : R1/8
Connection type : Cable type(cable type cable: 3m)
Pressure type : Compound pressure
Control output : Select one at parameter setting
NPN open collector output
PNP open collector output
Power supply : 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption : Max. 50mA(current output: Max. 70mA)
Protection structure : IP65

Mua Ngay :

Cảm biến áp suất Autonics PSQ-BC1U-Rc1/8
Applicable fluid : (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
Pressure port direction : Rear fitting
Pressure port : Rc1/8
Connection type : Cable type(cable type cable: 3m)
Pressure type : Compound pressure
Control output : Select one at parameter setting
NPN open collector output
PNP open collector output
Power supply : 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption : Max. 50mA(current output: Max. 70mA)
Protection structure : IP65

Mua Ngay :

Cảm biến áp suất Autonics PSQ-C01C-NPT1/8
Applicable fluid : (Pneumatic type) Air, Non-corrosive gas
Pressure port direction : Rear fitting
Pressure port : NPT1/8
Connection type : Connector type(connector type cable: 2m)
Pressure type : Compound pressure
Control output : Select one at parameter setting
NPN open collector output
PNP open collector output
Power supply : 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption : Max. 50mA
Protection structure : IP40

Mua Ngay :

Cảm biến áp suất Autonics PSQ-C01C-R1/8
Applicable fluid : (Pneumatic type) Air, Non-corrosive gas
Pressure port direction : Rear fitting
Pressure port : R1/8
Connection type : Connector type(connector type cable: 2m)
Pressure type : Compound pressure
Control output : Select one at parameter setting
NPN open collector output
PNP open collector output
Power supply : 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption : Max. 50mA
Protection structure : IP40

Mua Ngay :

Cảm biến áp suất Autonics PSQ-C01C-RC1/8

Applicable fluid : (Pneumatic type) Air, Non-corrosive gas
Pressure port direction : Rear fitting
Pressure port : Rc1/8
Connection type : Connector type(connector type cable: 2m)
Pressure type : Compound pressure
Control output : Select one at parameter setting
NPN open collector output
PNP open collector output
Power supply : 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption : Max. 50mA
Protection structure : IP40

Mua Ngay :

Cảm biến áp suất Autonics PSQ-C01CU-NPT1/8
Applicable fluid : (Pneumatic type) Air, Non-corrosive gas
Pressure port direction : Rear fitting
Pressure port : NPT1/8
Connection type : Connector type(connector type cable: 2m)
Pressure type : Compound pressure
Control output : Select one at parameter setting
NPN open collector output
PNP open collector output
Power supply : 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption : Max. 50mA(current output: Max. 70mA)
Protection structure : IP40

Mua Ngay :

Cảm biến áp suất Autonics PSQ-C01CU-R1/8
Applicable fluid : (Pneumatic type) Air, Non-corrosive gas
Pressure port direction : Rear fitting
Pressure port : R1/8
Connection type : Connector type(connector type cable: 2m)
Pressure type : Compound pressure
Control output : Select one at parameter setting
NPN open collector output
PNP open collector output
Power supply : 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption : Max. 50mA(current output: Max. 70mA)
Protection structure : IP40

Mua Ngay :

Cảm biến áp suất Autonics PSQ-C01CU-RC1/8

Applicable fluid : (Pneumatic type) Air, Non-corrosive gas
Pressure port direction : Rear fitting
Pressure port : Rc1/8
Connection type : Connector type(connector type cable: 2m)
Pressure type : Compound pressure
Control output : Select one at parameter setting
NPN open collector output
PNP open collector output
Power supply : 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption : Max. 50mA(current output: Max. 70mA)
Protection structure : IP40

Mua Ngay :

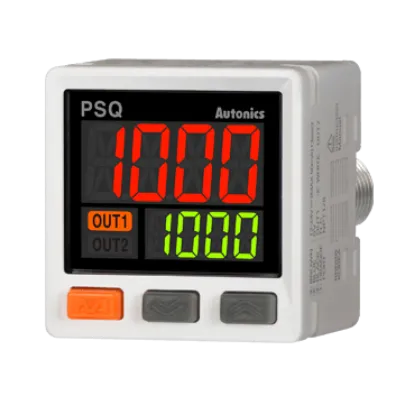

Cảm biến áp suất Autonics PSQ-C1C-NPT1/8
Applicable fluid : (Pneumatic type) Air, Non-corrosive gas
Pressure port direction : Rear fitting
Pressure port : NPT1/8
Connection type : Connector type(connector type cable: 2m)
Pressure type : Compound pressure
Control output : Select one at parameter setting
NPN open collector output
PNP open collector output
Power supply : 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption : Max. 50mA
Protection structure : IP40

Mua Ngay :
