Cảm biến áp suất

Cảm biến áp suất Autonics PSQ-C1C-R1/8

Applicable fluid : (Pneumatic type) Air, Non-corrosive gas
Pressure port direction : Rear fitting
Pressure port : R1/8
Connection type : Connector type(connector type cable: 2m)
Pressure type : Compound pressure
Control output : Select one at parameter setting
NPN open collector output
PNP open collector output
Power supply : 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption : Max. 50mA
Protection structure : IP40

Mua Ngay :

Cảm biến áp suất Autonics PSQ-C1C-RC1/8

Applicable fluid : (Pneumatic type) Air, Non-corrosive gas
Pressure port direction : Rear fitting
Pressure port : Rc1/8
Connection type : Connector type(connector type cable: 2m)
Pressure type : Compound pressure
Control output : Select one at parameter setting
NPN open collector output
PNP open collector output
Power supply : 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption : Max. 50mA
Protection structure : IP40

Mua Ngay :

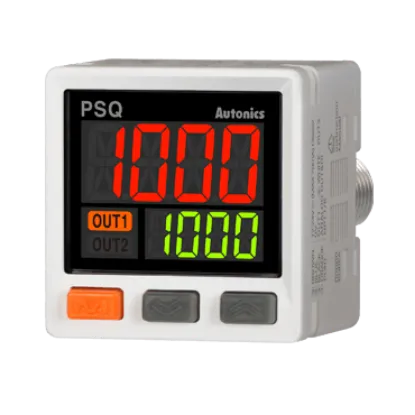

Cảm biến áp suất Autonics PSQ-C1CU-NPT1/8
Applicable fluid : (Pneumatic type) Air, Non-corrosive gas
Pressure port direction : Rear fitting
Pressure port : NPT1/8
Connection type : Connector type(connector type cable: 2m)
Pressure type : Compound pressure
Control output : Select one at parameter setting
NPN open collector output
PNP open collector output
Power supply : 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption : Max. 50mA(current output: Max. 70mA)
Protection structure : IP40

Mua Ngay :

Cảm biến áp suất Autonics PSQ-C1CU-R1/8
Applicable fluid : (Pneumatic type) Air, Non-corrosive gas
Pressure port direction : Rear fitting
Pressure port : R1/8
Connection type : Connector type(connector type cable: 2m)
Pressure type : Compound pressure
Control output : Select one at parameter setting
NPN open collector output
PNP open collector output
Power supply : 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption : Max. 50mA(current output: Max. 70mA)
Protection structure : IP40

Mua Ngay :

Cảm biến áp suất Autonics PSQ-C1CU-RC1/8

Applicable fluid : (Pneumatic type) Air, Non-corrosive gas
Pressure port direction : Rear fitting
Pressure port : Rc1/8
Connection type : Connector type(connector type cable: 2m)
Pressure type : Compound pressure
Control output : Select one at parameter setting
NPN open collector output
PNP open collector output
Power supply : 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption : Max. 50mA(current output: Max. 70mA)
Protection structure : IP40

Mua Ngay :

Cảm biến áp suất Autonics PSS-01A-M3
Loại áp suất : Áp suất tiêu chuẩn
Dải áp suất định mức : 0.0 đến 100.0kPa
Cổng áp suất : M3
Chất liệu : Vỏ trước/sau: PBT, Cổng áp suất: STS 303
Khối lượng thiết bị (khối lượng đóng gói) : ≈ 45 g (≈ 105g)

Mua Ngay :

Cảm biến áp suất Autonics PSS-01A-R04
Pressure type : Standard pressure
Rated pressure range : 0.0 to 100.0kPa
Pressure port : Ø4 reducer
Material : Front/Rear case and pressure port: PBT
Unit weight (packaged weight) : ≈ 45 g (≈ 105g)

Mua Ngay :

Cảm biến áp suất Autonics PSS-01A-R06
Pressure type : Standard pressure
Rated pressure range : 0.0 to 100.0kPa
Pressure port : Ø6 reducer
Material : Front/Rear case and pressure port: PBT
Unit weight (packaged weight) : ≈ 45 g (≈ 105g)

Mua Ngay :

Cảm biến áp suất Autonics PSS-01A-R1/8

Pressure type : Standard pressure
Rated pressure range : 0.0 to 100.0kPa
Pressure port : R1/8
Material : Front/Rear case: PBT, Pressure port: Nickel plated brass
Unit weight (packaged weight) : ≈ 50 g (≈ 110 g)
