Cảm biến Encoder

Cảm biến Encoder Autonics E80H32-512-3-V-5
Shaft inner diameter : Ø32mm
Max. response frequency : 200kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 200gf.cm(max. 0.0196N.m)
Resolution : 512P/R
Control output : Voltage
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial cable type
Protection structure : IP50

Cảm biến Encoder Autonics E80H32-60-3-V-24
Shaft inner diameter : Ø32mm
Max. response frequency : 200kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 200gf.cm(max. 0.0196N.m)
Resolution : 60P/R
Control output : Voltage
Power supply : 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial cable type
Protection structure : IP50

Cảm biến Encoder Autonics E80H32-60-3-V-5
Shaft inner diameter : Ø32mm
Max. response frequency : 200kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 200gf.cm(max. 0.0196N.m)
Resolution : 60P/R
Control output : Voltage
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial cable type
Protection structure : IP50

Cảm biến Encoder Autonics E80H30-60-3-V-5
Shaft inner diameter : Ø30mm
Max. response frequency : 200kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 200gf.cm(max. 0.0196N.m)
Resolution : 60P/R
Control output : Voltage
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial cable type
Protection structure : IP50

Cảm biến Encoder Autonics E80H30-60-3-V-24
Shaft inner diameter : Ø30mm
Max. response frequency : 200kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 200gf.cm(max. 0.0196N.m)
Resolution : 60P/R
Control output : Voltage
Power supply : 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial cable type
Protection structure : IP50

Cảm biến Encoder Autonics E80H30-100-3-V-24
Shaft inner diameter : Ø30mm
Max. response frequency : 200kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 200gf.cm(max. 0.0196N.m)
Resolution : 100P/R
Control output : Voltage
Power supply : 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial cable type
Protection structure : IP50

Cảm biến Encoder  Omron E6B2-CWZ6C 1800P/R 2M
Rotary Encoder
Incremental
External Diameter: 40 dia.
NPN open-collector output
1800 P/R
5 to 24 VDC
Phases A/B/Z
Pre-wired model
2 m

Cảm biến Encoder  Omron E6C2-CWZ1X 600P/R 2M
Rotary Encoder
Incremental
External Diameter: 50 dia.
Line-driver output
600 P/R
5 VDC
Phases A/-A/B/-B/Z/-Z
Pre-wired model
2 m

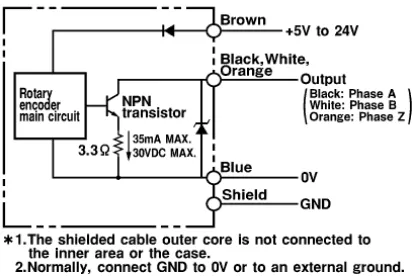

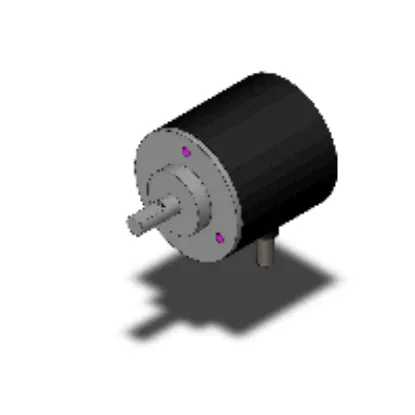

Cảm biến Encoder  Omron E6B2-CWZ6C 20P/R 2M
Rotary Encoder
Incremental
External Diameter: 40 dia.
NPN open-collector output
20 P/R
5 to 24 VDC
Phases A/B/Z
Pre-wired model
2 m
