Cảm biến Encoder

Cảm biến Encoder Autonics EP58SS6-180-2R-P-5
Shaft outer diameter : Ø6mm
Max. response frequency : 35kHz
Max. allowable revolution : 3000rpm
Starting torque : Max. 40gf.cm(max. 0.00392N.m)
Resolution : 180P/R
Rotating direction : CCW
Control output : PNP open collector
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Axial cable type
Protection structure : IP50

Cảm biến Encoder Autonics EP58SS6-180-3R-P-5
Shaft outer diameter : Ø6mm
Max. response frequency : 35kHz
Max. allowable revolution : 3000rpm
Starting torque : Max. 40gf.cm(max. 0.00392N.m)
Resolution : 180P/R
Rotating direction : CCW
Control output : PNP open collector
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Axial cable type
Protection structure : IP50

Cảm biến Encoder Autonics EP58SS6-180-1F-N-5
Shaft outer diameter : Ø6mm
Max. response frequency : 35kHz
Max. allowable revolution : 3000rpm
Starting torque : Max. 40gf.cm(max. 0.00392N.m)
Resolution : 180P/R
Rotating direction : CW
Control output : NPN open collector
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Axial cable type
Protection structure : IP50

Cảm biến Encoder Autonics EP58SS6-180-2F-N-5
Shaft outer diameter : Ø6mm
Max. response frequency : 35kHz
Max. allowable revolution : 3000rpm
Starting torque : Max. 40gf.cm(max. 0.00392N.m)
Resolution : 180P/R
Rotating direction : CW
Control output : NPN open collector
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Axial cable type
Protection structure : IP50

Cảm biến Encoder Autonics EP58SS6-180-3F-N-5
Shaft outer diameter : Ø6mm
Max. response frequency : 35kHz
Max. allowable revolution : 3000rpm
Starting torque : Max. 40gf.cm(max. 0.00392N.m)
Resolution : 180P/R
Rotating direction : CW
Control output : NPN open collector
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Axial cable type
Protection structure : IP50

Cảm biến Encoder Autonics EP58SS6-180-1R-N-5
Shaft outer diameter : Ø6mm
Max. response frequency : 35kHz
Max. allowable revolution : 3000rpm
Starting torque : Max. 40gf.cm(max. 0.00392N.m)
Resolution : 180P/R
Rotating direction : CCW
Control output : NPN open collector
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Axial cable type
Protection structure : IP50

Cảm biến Encoder Autonics EP58SS6-180-2R-N-5
Shaft outer diameter : Ø6mm
Max. response frequency : 35kHz
Max. allowable revolution : 3000rpm
Starting torque : Max. 40gf.cm(max. 0.00392N.m)
Resolution : 180P/R
Rotating direction : CCW
Control output : NPN open collector
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Axial cable type
Protection structure : IP50

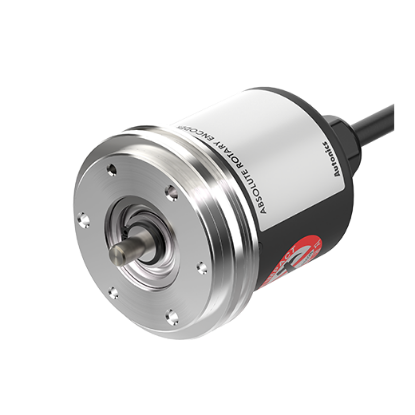

Cảm biến Encoder Autonics EP58SS6-180-3R-N-5
Shaft outer diameter : Ø6mm
Max. response frequency : 35kHz
Max. allowable revolution : 3000rpm
Starting torque : Max. 40gf.cm(max. 0.00392N.m)
Resolution : 180P/R
Rotating direction : CCW
Control output : NPN open collector
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Axial cable type
Protection structure : IP50

Cảm biến Encoder Autonics EP58SS6-256-1F-P-5
Shaft outer diameter : Ø6mm
Max. response frequency : 35kHz
Max. allowable revolution : 3000rpm
Starting torque : Max. 40gf.cm(max. 0.00392N.m)
Resolution : 256P/R
Rotating direction : CW
Control output : PNP open collector
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Axial cable type
Protection structure : IP50
