Cảm biến Encoder

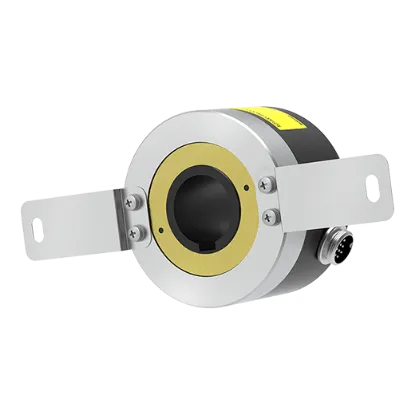

Cảm biến Encoder Autonics E100H35-10000-3-N-24
Shaft inner diameter : Ø35mm
Max. response frequency : 300kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 300gf.cm(max. 0.0294N.m)
Resolution : 10000P/R
Control output : NPN open collector
Power supply : 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial connector type
Protection structure : IP50

Cảm biến Encoder Autonics E100H35-10000-3-N-5
Shaft inner diameter : Ø35mm
Max. response frequency : 300kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 300gf.cm(max. 0.0294N.m)
Resolution : 10000P/R
Control output : NPN open collector
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial connector type
Protection structure : IP50

Cảm biến Encoder Autonics E100H35-10000-3-V-24
Shaft inner diameter : Ø35mm
Max. response frequency : 300kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 300gf.cm(max. 0.0294N.m)
Resolution : 10000P/R
Control output : Voltage
Power supply : 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial connector type
Protection structure : IP50

Cảm biến Encoder Autonics E100H35-10000-3-V-5
Shaft inner diameter : Ø35mm
Max. response frequency : 300kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 300gf.cm(max. 0.0294N.m)
Resolution : 10000P/R
Control output : Voltage
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial connector type
Protection structure : IP50

Cảm biến Encoder  Omron E6C3-CWZ5GH 2000P/R 1M
Rugged Rotary Encoder
Incremental
External Diameter: 50 dia.
Complementary output
2000 P/R
12 to 24 VDC
Phases A/B/Z
Pre-wired model
1 m

Cảm biến Encoder  Omron E6C3-CWZ5GH 100P/R 2M
Rugged Rotary Encoder
Incremental
External Diameter: 50 dia.
Complementary output
100 P/R
12 to 24 VDC
Phases A/B/Z
Pre-wired model
2 m

Cảm biến Encoder Autonics E80H30-1024-6-L-24

Đường kính trong trục : Ø30mm
Tần số đáp ứng tối đa : 200kHz
Độ phân giải cho phép tối đa : 3600rpm
Mô-men khởi động : Max. 200gf.cm(max. 0.0196N.m)
Độ phân giải : 1024P/R
Ngõ ra điều khiển : Line Driver
Nguồn cấp : 12-24VDC @(=) ±5%(sóng P-P: max. 5%)
Loại kết nối : loại cáp hướng tâm
Cấu trúc bảo vệ : IP50

Cảm biến Encoder Autonics E80H30-3200-6-L-5
Shaft inner diameter : Ø30mm
Max. response frequency : 200kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 200gf.cm(max. 0.0196N.m)
Resolution : 3200P/R
Control output : Line Driver
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial cable type
Protection structure : IP50

Cảm biến Encoder Autonics E80H30-3200-6-L-24
Shaft inner diameter : Ø30mm
Max. response frequency : 200kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 200gf.cm(max. 0.0196N.m)
Resolution : 3200P/R
Control output : Line Driver
Power supply : 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial cable type
Protection structure : IP50
