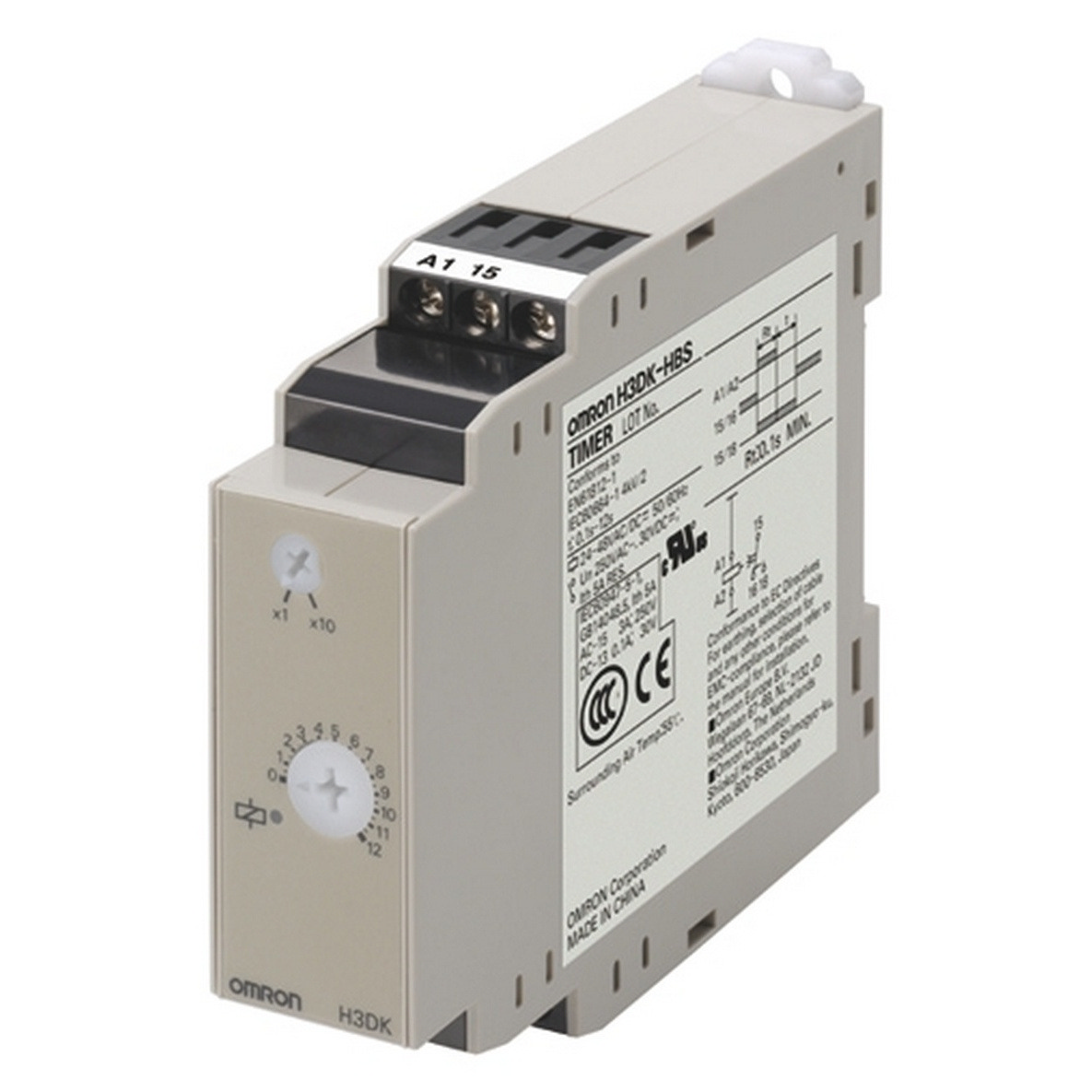

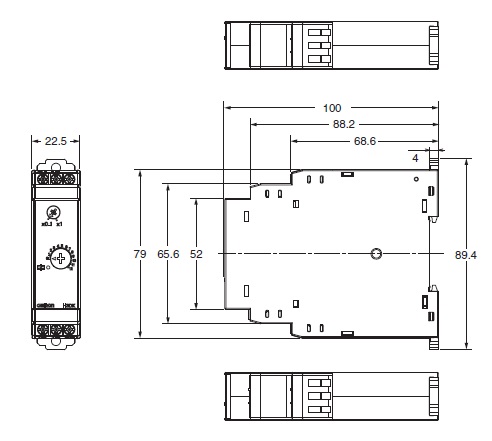

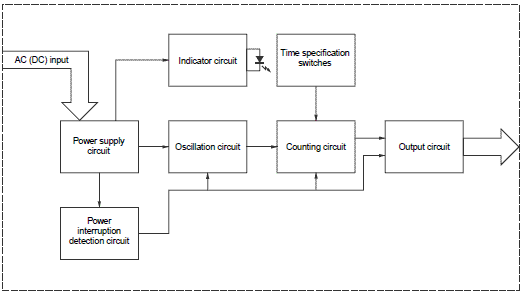

| Model | H3DK-HBS AC/DC24-48 |
|---|
| Rated power supply voltage | 24 to 48 VAC 50/60 Hz24 to 48 VDC Ripple 20% max. |
|---|
| Allowable voltage variable range | 85 to 110% of the power supply voltage |
|---|
| Power consumption | Approx. 1.2 VA (at 48 VAC) |
|---|
| Number of time ranges | 2 |
|---|
| Operation mode | Power OFF-delay |
|---|
| Control output (Type) | Relay output (SPDT) |
|---|
| Control output (Contact output) | Minimum applicable load: 100 mA at 5 VDC (failure level: P Reference value) |
|---|
| Operating resetting | Instantaneous operation/Time-limit reset |
|---|
| Ambient temperature range | Operating: -20 to 55 ℃ (with no icing)Storage: -40 to 70 ℃ (with no icing) |
|---|
| Ambient humidity range | Operating: 25 to 85 % |
|---|
| Accuracy of operating time | ±1% FS max. (±1% ±10 ms in a range of 1.2 s) |
|---|
| Setting error | ±10% FS ±0.05 s max. |
|---|
| Influence of voltage | ±0.5% FS max. (±0.5% ±10 ms in a range of 1.2 s) |
|---|
| Influence of temperature | ±2% FS max. (±2% ±10 ms in a range of 1.2 s) |
|---|
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
|---|
| Dielectric strength | Between current carrying metal parts and non-current carrying metal parts: 2,000 VAC 50/60 Hz 1 minBetween control output terminals and operating circuit: 2,000 VAC 50/60 Hz 1 minBetween non-continuous contacts: 1,000 VAC 50/60 Hz 1 min |
|---|
| Impulse withstand voltage | Between power terminals: 1 kVBetween current carrying terminals and exposed non-current carrying metal parts: 1.5 kV |
|---|
| Noise immunity | ±1.5 kV (between power terminals), square-wave noise by noise simulator (pulse width: 100 ns/1 µs, 1-ns rise) |
|---|
| Static immunity | Mulfunction: 4 kV, Destruction: 8 kV |
|---|
| Vibration resistance | Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 2 hMalfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min |
|---|
| Shock resistance | Destruction: 1,000 m/s2, 3 times each in 6 directionsMalfunction: 100 m/s2, 3 times each in 6 directions |
|---|
| Life expectancy (relay output) | Electrical: 100,000 operations min. (5 A at 250 VAC, resistive load at 1200 operations/h)Mechanical: 10 million operations min. (under no load at 1,200 operations/h) |
|---|
| Degree of protection | IP30 (Terminal Block: IP20) |
|---|
| Connecting method | Terminal blocks |
|---|
| Weight | Approx. 120 g |
|---|
| Accessories | User label |
|---|
