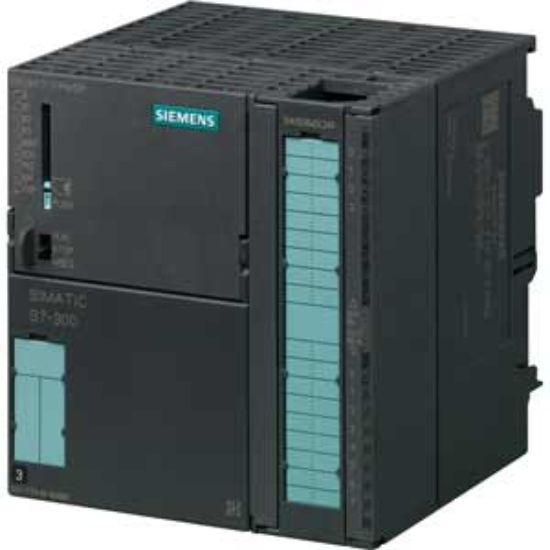

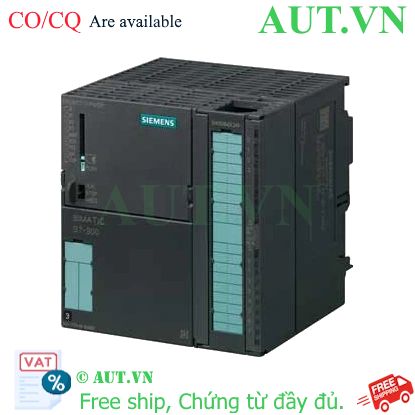

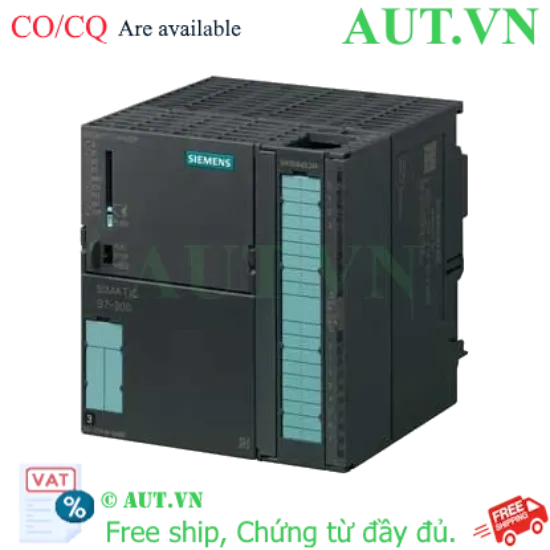

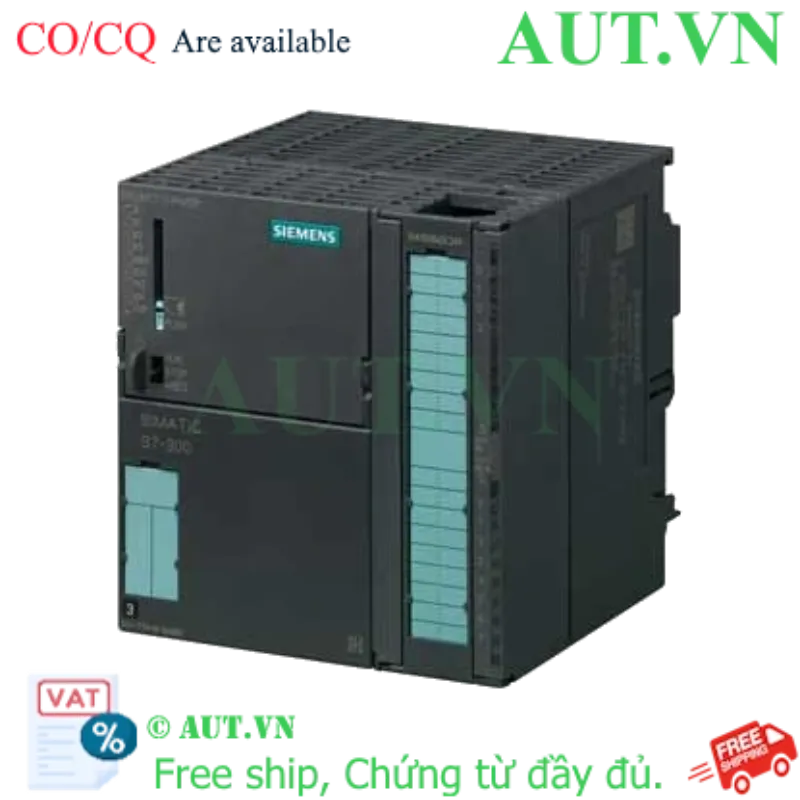

| Model | 6ES7317-7TK10-0AB0 |
| Loại | Technology modules |
| Nguồn cấp | 24VDC |
| Số ngõ vào digital | 4 |
| Số ngõ ra digital | 8 |
| Số ngõ vào analog | 0 |
| Bộ nhớ | 1024KB |
| Phụ kiện mua rời | Thanh ray: 6ES7390-1AB60-0AA0, Thanh ray: 6ES7390-1AE80-0AA0, Thanh ra y: 6ES7390-1AF30-0AA0, Thanh ray: 6ES7390-1AJ30-0AA0, Thanh ray: 6ES7390-1BC00-0AA0 [...] |
| Cáp kết nối (Bán riêng) | 6ES7901-0BF00-0AA0, 6ES7923-0BA50-0CB0, 6ES7923-0BB00-0CB0, 6ES7923-0B B00-0DB0, 6ES7923-0BB50-0CB0, 6ES7923-0BC00-0CB0, 6ES7923-0BC00-0DB0, 6ES7923-0BC50-0CB0, 6ES7923-0BC50-0DB0, 6ES7923-0BD00-0CB0, 6ES7923-0BD00-0DB0, 6ES7923-0BE00-0CB0, 6ES7923-0BE00-0DB0, 6ES7923-0BF00-0CB0, 6ES7923-0BF00-0DB0, 6ES7923-0BG50-0CB0, 6ES7923-0BG50-0DB0, 6ES7923-0BJ00-0CB0, 6ES7923-0BJ00-0DB0, 6ES7923-0CB00-0CB0, 6ES7923-0CB00-0DB0, 6ES7923-5BA50-0EB0, 6ES7923-5BB00-0EB0, 6ES7923-5BB50-0EB0, 6ES7923-5BC00-0EB0, 6ES7923-5BC50-0EB0, 6ES7923-5BD00-0EB0, 6ES7923-5BE00-0EB0, 6ES7923-5BF00-0EB0, 6ES7923-5BG50-0EB0, 6ES7923-5BJ00-0EB0, 6ES7923-5CB00-0EB0, 6XV1830-0EH10 [...] |
| Mô-đun mở rộng (Bán riêng) | Digital input module: 6ES7321-1BH02-0AA0, Digital input module: 6ES732 1-1BH10-0AA0, Digital input module: 6ES7321-1BH50-0AA0, Digital input module: 6ES7321-1BL00-0AA0, Digital input module: 6ES7321-1BP00-0AA0, Digital input module: 6ES7321-1CH00-0AA0, Digital input module: 6ES7321-1CH20-0AA0, Digital input module: 6ES7321-1EL00-0AA0, Digital input module: 6ES7321-1FF01-0AA0, Digital input module: 6ES7321-1FF10-0AA0, Digital input module: 6ES7321-1FH00-0AA0, Digital input module: 6ES7321-7BH01-0AB0, Digital output module: 6ES7322-1BF01-0AA0, Digital output module: 6ES7322-1BH01-0AA0, Digital output module: 6ES7322-1BH10-0AA0, Digital output module: 6ES7322-1BL00-0AA0, Digital output module: 6ES7322-1BP00-0AA0, Digital output module: 6ES7322-1BP50-0AA0, Digital output module: 6ES7322-1CF00-0AA0, Digital output module: 6ES7322-1FF01-0AA0, Digital output module: 6ES7322-1FH00-0AA0, Digital output module: 6ES7322-1FL00-0AA0, Digital output module: 6ES7322-1HF01-0AA0, Digital output module: 6ES7322-1HF10-0AA0, Digital output module: 6ES7322-1HH01-0AA0, Digital output module: 6ES7322-5FF00-0AB0, Digital output module: 6ES7322-5GH00-0AB0, Digital output module: 6ES7322-5HF00-0AB0, Digital output module: 6ES7322-8BF00-0AB0, Digital I/O module: 6ES7323-1BH01-0AA0, Digital I/O module: 6ES7323-1BL00-0AA0, Digital I/O module: 6ES7327-1BH00-0AB0, Analog input module: 6ES7331-1KF02-0AB0, Analog input module: 6ES7331-7HF01-0AB0, Analog input module: 6ES7331-7KB02-0AB0, Analog input module: 6ES7331-7KF02-0AB0, Analog input module: 6ES7331-7NF00-0AB0, Analog input module: 6ES7331-7NF10-0AB0, Analog input module: 6ES7331-7PE10-0AB0, Analog input module: 6ES7331-7PF01-0AB0, Analog input module: 6ES7331-7PF11-0AB0, Analog output module: 6ES7332-5HB01-0AB0, Analog output module: 6ES7332-5HD01-0AB0, Analog output module: 6ES7332-5HF00-0AB0, Analog output module: 6ES7332-7ND02-0AB0, Analog I/O module: 6ES7334-0CE01-0AA0, Analog I/O module: 6ES7334-0KE00-0AB0, Counter module: 6ES7350-1AH03-0AE0, Counter module: 6ES7350-2AH01-0AE0, Positioning module: 6ES7351-1AH02-0AE0, Cam controller: 6ES7352-1AH02-0AE0, High-speed Boolean processor: 6ES7352-5AH01-0AE0, High-speed Boolean processor: 6ES7352-5AH11-0AE0, Controller module: 6ES7355-0VH10-0AE0, Controller module: 6ES7355-1VH10-0AE0, Temperature controller module: 6ES7355-2CH00-0AE0, Temperature controller module: 6ES7355-2SH00-0AE0, POS input module: 6ES7338-4BC01-0AB0, SIWAREX FTA weighing electronics: 7MH4900-2AA01, SIWAREX U weighing electronics: 7MH4950-1AA01, SIWAREX U weighing electronics: 7MH4950-2AA01, Simulator module: 6ES7374-2XH01-0AA0, Dummy module: 6ES7370-0AA01-0AA0 [...] |
| Mô-đun giao diện (Bán riêng) | 6ES7340-1AH02-0AE0, 6ES7340-1BH02-0AE0, 6ES7340-1CH02-0AE0, 6ES7341-1A H02-0AE0, 6ES7341-1BH02-0AE0, 6ES7341-1CH02-0AE0, 6GK7342-5DA03-0XE0, 6GK7343-5FA01-0XE0, 6GK7343-1CX10-0XE0, 6GK7343-1EX30-0XE0, 6GK7343-1GX31-0XE0, 6GK7377-1AA00-0AA0, 6NH7800-3CA00, 6GT2002-0GA10, 6ES7360-3AA01-0AA0, 6ES7361-3CA01-0AA0, 6ES7365-0BA01-0AA0 [...] |
| Mô-đun cấp nguồn (Bán riêng) | 6ES7305-1BA80-0AA0, 6ES7307-1BA01-0AA0, 6ES7307-1EA01-0AA0, 6ES7307-1E A80-0AA0, 6ES7307-1KA02-0AA0 [...] |
| Thẻ nhớ (Bán riêng) | 6ES7953-8LF31-0AA0, 6ES7953-8LG31-0AA0, 6ES7953-8LJ31-0AA0, 6ES7953-8L L31-0AA0, 6ES7953-8LP31-0AA0 [...] |
| Đầu nối (Bán riêng) | Connector plug: 6ES7972-0BA12-0XA0, Connector plug: 6ES7972-0BA52-0XA0 , Connector plug: 6ES7972-0BA52-0XB0, Connector plug: 6ES7972-0BB12-0XA0, Connector plug: 6ES7972-0BB52-0XA0, Connector plug: 6ES7972-0BB52-0XB0, Connector terminal block conversion unit: XW2R-E34GD-C1, Connector terminal block conversion unit: XW2R-E34GD-C2, Connector terminal block conversion unit: XW2R-E34GD-C3, Connector terminal block conversion unit: XW2R-E34GD-C4, Connector terminal block conversion unit: XW2R-J34GD-C1, Connector terminal block conversion unit: XW2R-J34GD-C2, Connector terminal block conversion unit: XW2R-J34GD-C3, Connector terminal block conversion unit: XW2R-J34GD-C4, Connector terminal block conversion unit: XW2R-P34GD-C1, Connector terminal block conversion unit: XW2R-P34GD-C2, Connector terminal block conversion unit: XW2R-P34GD-C3, Connector terminal block conversion unit: XW2R-P34GD-C4, Front connector module: 6ES7921-3AA00-0AA0, Front connector module: 6ES7921-3AA20-0AA0, Front connector module: 6ES7921-3AB00-0AA0, Front connector module: 6ES7921-3AB20-0AA0, Front connector module: 6ES7921-3AC00-0AA0, Front connector module: 6ES7921-3AD00-0AA0, Front connector module: 6ES7921-3AF00-0AA0, Front connector module: 6ES7921-3AF20-0AA0, Front connector module: 6ES7921-3AG20-0AA0, Front connector module: 6ES7921-3AK20-0AA0, Front connector with screw contact: 6ES7392-1AJ00-0AA0, Front connector with screw contact: 6ES7392-1AJ00-1AB0, Front connector with screw contact: 6ES7392-1AM00-0AA0, Front connector with screw contact: 6ES7392-1AM00-1AB0, Front connector with screw contact: 6ES7392-1BM01-0AA0, Front connector with spring-load contact: 6ES7392-1BM01-1AB0, Front connector with spring-load contact: 6ES7392-1BJ00-0AA0, Front connector with spring-load contact: 6ES7392-1BJ00-1AB0, Front connector with spring-load contact: 6ES7392-1BM01-0AA0 [...] |
| Phụ kiện khác (Bán riêng) | Profibus bus connector: 6GK1500-0EA02, Profibus bus connector: 6GK1571 -0BA00-0AA0, Mounting space label: 6ES7912-0AA00-0AA0 [...] |
| Category | Khối CPU |
| Công suất tiêu thụ | 7.5W |
| Ngôn ngữ lập trình | LAD, FBD, STL, SCL, CFC, GRAPH, HiGraph® |
| Kiểu ngõ vào digital | Sink |
| Kiểu đấu nối ngõ ra digital | Source |
| Dòng tải ngõ ra Max | 5W |
| Bàn phím lập trình | No |
| Kiểu hiển thị | Hiển thị LED |
| Phương thức giao tiếp | RS-485 (1ch), Ethernet (2ch) |
| Giao thức truyền thông | MPI, PROFIBUS-DP master, PROFIBUS-DP slave, Open IE communication, PRO FINET IO Controller, PROFINET IO Device [...] |
| Giao tiếp vật lý | DB9 Female, RJ45 |
| Số cổng giao tiếp | 4 |
| Số điểm ngõ vào digital mở rộng | 65,536 |
| Số điểm ngõ vào analog mở rộng | 4,096 |
| Số điểm ngõ ra analog mở rộng | 4,096 |
| Chức năng bảo vệ | Ngắn mạch đầu ra |
| Chức năng | Status block, Single step, Diagnostics indication LED |
| Kiểu lắp đặt | Gắn thanh ray DIN |
| Nhiệt độ hoạt động môi trường | 0...60°C |
| Khối lượng tương đối | 640g |
| Chiều rộng tổng thể | 120mm |
| Chiều cao tổng thể | 125mm |
| Chiều sâu tổng thể | 130mm |
| Tiêu chuẩn | CE, UKCA, UL, RCM |
