Các sản phẩm được gắn thẻ 'Cảm biến áp suất'

AUT.VN Cảm biến áp suất Autonics PSAN-BC01H-R1/8
Applicable fluid : (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
Pressure port direction : Rear fitting
Pressure port : R1/8
Connection type : Cable type(cable type cable: 3m)
Pressure type : Compound pressure
Power supply : 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption : Voltage output type: Max. 50mA
Current output type: Max. 75mA
Protection structure : IP65

Mua Ngay :

AUT.VN Cảm biến áp suất Autonics PSAN-BC01PH-R1/8
Applicable fluid : (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
Pressure port direction : Rear fitting
Pressure port : R1/8
Connection type : Cable type(cable type cable: 3m)
Pressure type : Compound pressure
Control output_PNP open collector : PNP open collector
Power supply : 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption : Voltage output type: Max. 50mA
Current output type: Max. 75mA
Protection structure : IP65

Mua Ngay :

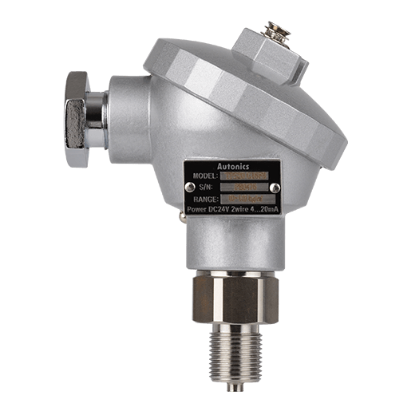

AUT.VN Cảm biến áp suất Autonics TPS20-A13P2-00
Measured materials : Liquid, gas, oil (except corrosive environment of stainless steel type 316)
Power supply : 15-35VDC @(=)
Linearity : ±0.3％ F.S. (-10 to 50℃), ±0.5％F.S. (50 to 70℃)
Hysteresis : ±0.3% F.S.
Environment_Ambient temperature : -10 to 70℃, storage: -10 to 70℃
Environment_Ambient humidity : 5 to 95% RH, storage: 5 to 95% RH
Material : Sealing, diaphragm, connection: stainless steel type 316, O-ring: fluoro rubber

Mua Ngay :

AUT.VN Cảm biến áp suất Autonics TPS20-A13P8-00
Measured materials : Liquid, gas, oil (except corrosive environment of stainless steel type 316)
Power supply : 15-35VDC @(=)
Linearity : ±0.3％ F.S. (-10 to 50℃), ±0.5％F.S. (50 to 70℃)
Hysteresis : ±0.3% F.S.
Environment_Ambient temperature : -10 to 70℃, storage: -10 to 70℃
Environment_Ambient humidity : 5 to 95% RH, storage: 5 to 95% RH
Material : Sealing, diaphragm, connection: stainless steel type 316, O-ring: fluoro rubber

Mua Ngay :

AUT.VN Cảm biến áp suất Autonics TPS20-A14P2-00
Measured materials : Liquid, gas, oil (except corrosive environment of stainless steel type 316)
Power supply : 15-35VDC @(=)
Linearity : ±0.3％ F.S. (-10 to 50℃), ±0.5％F.S. (50 to 70℃)
Hysteresis : ±0.3% F.S.
Environment_Ambient temperature : -10 to 70℃, storage: -10 to 70℃
Environment_Ambient humidity : 5 to 95% RH, storage: 5 to 95% RH
Material : Sealing, diaphragm, connection: stainless steel type 316, O-ring: fluoro rubber

Mua Ngay :

AUT.VN Cảm biến áp suất Autonics TPS20-A14P8-00
Measured materials : Liquid, gas, oil (except corrosive environment of stainless steel type 316)
Power supply : 15-35VDC @(=)
Linearity : ±0.3％ F.S. (-10 to 50℃), ±0.5％F.S. (50 to 70℃)
Hysteresis : ±0.3% F.S.
Environment_Ambient temperature : -10 to 70℃, storage: -10 to 70℃
Environment_Ambient humidity : 5 to 95% RH, storage: 5 to 95% RH
Material : Sealing, diaphragm, connection: stainless steel type 316, O-ring: fluoro rubber

Mua Ngay :
