Cảm biến Encoder

Cảm biến Encoder Autonics E60H20-8192-3-T-5
Shaft inner diameter : Ø20mm
Max. response frequency : 300kHz
Max. allowable revolution : 6000rpm
Starting torque : Max. 150gf.cm(max. 0.0147N.m)
Resolution : 8192P/R
Control output : Totem pole
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial cable type
Protection structure : IP50

Cảm biến Encoder Autonics E60H20-8192-3-N-24
Shaft inner diameter : Ø20mm
Max. response frequency : 300kHz
Max. allowable revolution : 6000rpm
Starting torque : Max. 150gf.cm(max. 0.0147N.m)
Resolution : 8192P/R
Control output : NPN open collector
Power supply : 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial cable type
Protection structure : IP50

Cảm biến Encoder Autonics E60H20-8192-3-N-5
Shaft inner diameter : Ø20mm
Max. response frequency : 300kHz
Max. allowable revolution : 6000rpm
Starting torque : Max. 150gf.cm(max. 0.0147N.m)
Resolution : 8192P/R
Control output : NPN open collector
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial cable type
Protection structure : IP50

Cảm biến Encoder Autonics E60H20-8192-3-V-24
Shaft inner diameter : Ø20mm
Max. response frequency : 300kHz
Max. allowable revolution : 6000rpm
Starting torque : Max. 150gf.cm(max. 0.0147N.m)
Resolution : 8192P/R
Control output : Voltage
Power supply : 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial cable type
Protection structure : IP50

Cảm biến Encoder Autonics E60H20-8192-3-V-5
Shaft inner diameter : Ø20mm
Max. response frequency : 300kHz
Max. allowable revolution : 6000rpm
Starting torque : Max. 150gf.cm(max. 0.0147N.m)
Resolution : 8192P/R
Control output : Voltage
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial cable type
Protection structure : IP50

Cảm biến Encoder  Omron E6B2-CWZ5B 100P/R 0.5M
Rotary Encoder
Incremental
External Diameter: 40 dia.
PNP open-collector output
100 P/R
12 to 24 VDC
Phases A/B/Z
Pre-wired model
0.5 m

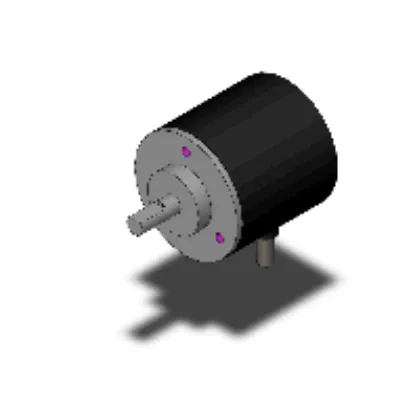

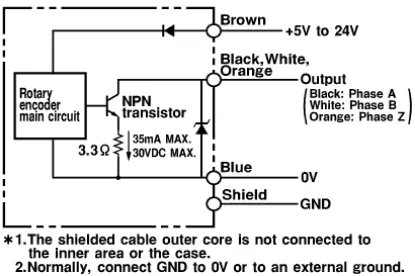

Cảm biến Encoder  Omron E6B2-CWZ6C 2000P/R 0.5M
Rotary Encoder
Incremental
External Diameter: 40 dia.
NPN open-collector output
2000 P/R
5 to 24 VDC
Phases A/B/Z
Pre-wired model
0.5 m

Cảm biến Encoder  Omron E6C2-CWZ6C 500P/R 2M
Rotary Encoder
Incremental
External Diameter: 50 dia.
NPN Open-collector output
500 P/R
5 to 24 VDC
Phases A/B/Z
Pre-wired model
2 m

Cảm biến Encoder  Omron E6C2-CWZ6C 10P/R 2M
Rotary Encoder
Incremental
External Diameter: 50 dia.
NPN Open-collector output
10 P/R
5 to 24 VDC
Phases A/B/Z
Pre-wired model
2 m
