Cảm biến Encoder

Cảm biến Encoder Autonics E100H35-512-3-T-24
Shaft inner diameter : Ø35mm
Max. response frequency : 300kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 300gf.cm(max. 0.0294N.m)
Resolution : 512P/R
Control output : Totem pole
Power supply : 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial connector type
Protection structure : IP50

Cảm biến Encoder Autonics E100H35-512-3-T-5
Shaft inner diameter : Ø35mm
Max. response frequency : 300kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 300gf.cm(max. 0.0294N.m)
Resolution : 512P/R
Control output : Totem pole
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial connector type
Protection structure : IP50

Cảm biến Encoder Autonics E100H35-1024-3-T-5
Shaft inner diameter : Ø35mm
Max. response frequency : 300kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 300gf.cm(max. 0.0294N.m)
Resolution : 1024P/R
Control output : Totem pole
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial connector type
Protection structure : IP50

Cảm biến Encoder Autonics E100H35-512-3-N-5
Shaft inner diameter : Ø35mm
Max. response frequency : 300kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 300gf.cm(max. 0.0294N.m)
Resolution : 512P/R
Control output : NPN open collector
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial connector type
Protection structure : IP50

Cảm biến Encoder Autonics E100H35-1024-3-N-5
Shaft inner diameter : Ø35mm
Max. response frequency : 300kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 300gf.cm(max. 0.0294N.m)
Resolution : 1024P/R
Control output : NPN open collector
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial connector type
Protection structure : IP50

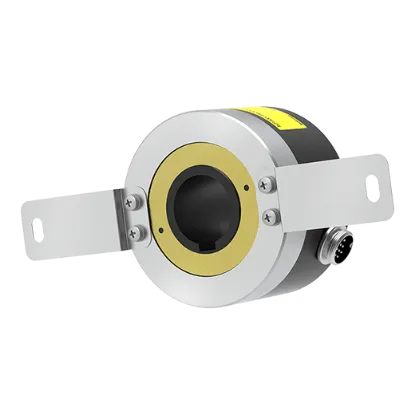

Cảm biến Encoder Autonics E100H35-512-3-V-24
Shaft inner diameter : Ø35mm
Max. response frequency : 300kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 300gf.cm(max. 0.0294N.m)
Resolution : 512P/R
Control output : Voltage
Power supply : 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial connector type
Protection structure : IP50

Cảm biến Encoder Autonics E100H35-512-3-V-5
Shaft inner diameter : Ø35mm
Max. response frequency : 300kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 300gf.cm(max. 0.0294N.m)
Resolution : 512P/R
Control output : Voltage
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial connector type
Protection structure : IP50

Cảm biến Encoder Autonics E100H35-1024-3-V-24
Shaft inner diameter : Ø35mm
Max. response frequency : 300kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 300gf.cm(max. 0.0294N.m)
Resolution : 1024P/R
Control output : Voltage
Power supply : 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial connector type
Protection structure : IP50

Cảm biến Encoder Autonics E100H35-1024-3-V-5
Shaft inner diameter : Ø35mm
Max. response frequency : 300kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 300gf.cm(max. 0.0294N.m)
Resolution : 1024P/R
Control output : Voltage
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial connector type
Protection structure : IP50
