Cảm biến quang điện

Cảm biến quang điện Autonics BJ7M-TDT-P

Sensing type : Through-beam type
Sensing distance : 7m
Sensing target : Opaque material of min. Ø8mm
Light source : Red LED(650nm)
Response time : Max. 1ms
Power supply : 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Operation mode : Light ON/Dark ON(set by switch)
Control output : PNP open collector

Cảm biến quang điện Autonics BJ7M-TDT

Sensing type : Through-beam type
Sensing distance : 7m
Sensing target : Opaque material of min. Ø8mm
Light source : Red LED(650nm)
Response time : Max. 1ms
Power supply : 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Operation mode : Light ON/Dark ON(set by switch)
Control output : NPN open collector

Cảm biến quang điện Autonics BJG30-DDT

Sensing type : Diffuse reflective type
Sensing distance : 30mm(Non-glossy white paper 100×100mm), 15mm(Transparent glass 50×50mm, t=3.0mm)
Sensing target : Opaque, Translucent material(30mm), Transparent glass(15mm)
Light source : Infrared LED(850nm)
Response time : Max. 1ms
Power supply : 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Operation mode : Light ON
Control output : NPN open collector

Thông tin mô tả sản phẩm: E3FB-DP22

E3FB-DP22 - Cảm biến quang thu phát chung Omron 10-30VDC

10...30VDC
Thu-phát chung
Khoảng cách phát hiện: 300mm
PNP
Dark ON, Light ON

Thông tin mô tả sản phẩm: E3Z-T86-L

E3Z-T86-L
Cảm biến quang thu phát riêng Omron
15m

12...24VDC
Thu-phát riêng (bộ phát)
Khoảng cách phát hiện: 15m
PNP
Dark ON, Light ON

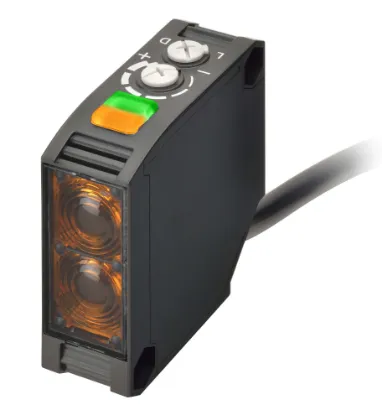

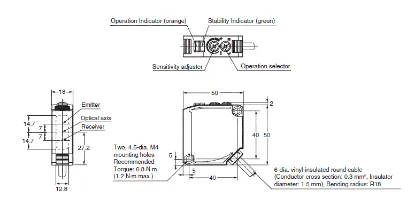

Cảm biến quang điện  Omron E3JK-RN12 2M
Photoelectric Sensor
DC power type
Retro-reflective with MSR function
Red light
Sensing distance: 100 mm to 6 m (when using E39-R1)
NPN output
Pre-wired
2 m
Without reflector

Cảm biến quang điện Autonics BX15M-TDT

Sensing type : Through-beam type
Sensing distance : 15m
Sensing target : Opaque material of min. Ø15mm
Light source : Infrared LED(850nm)
Response time : Max. 1ms
Power supply : 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Operation mode : Light ON/Dark ON(set by switch)
Control output : NPN, PNP open collector simultaneous output

Cảm biến quang điện Autonics BJ1M-DDT-C

Sensing type : Diffuse reflective type
Sensing distance : 1m
Sensing target : Opaque, Translucent material
Light source : Infrared LED(850nm)
Response time : Max. 1ms
Power supply : 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Operation mode : Light ON/Dark ON(set by switch)
Control output : NPN open collector

Cảm biến quang điện Autonics BJ1M-DDT-C-P

Sensing type : Diffuse reflective type
Sensing distance : 1m
Sensing target : Opaque, Translucent material
Light source : Infrared LED(850nm)
Response time : Max. 1ms
Power supply : 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Operation mode : Light ON/Dark ON(set by switch)
Control output : PNP open collector
