Cảm biến Encoder
Cảm biến Encoder là một thiết bị điện tử đo đạc góc quay hoặc vị trí tuyến tính của một trục quay hoặc một vật thể di chuyển. Nó hoạt động bằng cách chuyển đổi chuyển động cơ học thành tín hiệu điện tử, có thể được sử dụng để điều khiển, giám sát hoặc đo lường chính xác.
AUT.VN Cảm biến Encoder Autonics E100H35-512-6-L-24
AUT.VN Cảm biến Encoder Autonics E100H35-512-6-L-24
Shaft inner diameter : Ø35mm
Max. response frequency : 300kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 300gf.cm(max. 0.0294N.m)
Resolution : 512P/R
Control output : Line Driver
Power supply : 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial connector type
Protection structure : IP50
Shaft inner diameter : Ø35mm
Max. response frequency : 300kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 300gf.cm(max. 0.0294N.m)
Resolution : 512P/R
Control output : Line Driver
Power supply : 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial connector type
Protection structure : IP50
Mua Ngay :
9.408.000 ₫
5.832.960 ₫
AUT.VN Cảm biến Encoder Autonics E100H35-512-3-V-5
AUT.VN Cảm biến Encoder Autonics E100H35-512-3-V-5
Shaft inner diameter : Ø35mm
Max. response frequency : 300kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 300gf.cm(max. 0.0294N.m)
Resolution : 512P/R
Control output : Voltage
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial connector type
Protection structure : IP50
Shaft inner diameter : Ø35mm
Max. response frequency : 300kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 300gf.cm(max. 0.0294N.m)
Resolution : 512P/R
Control output : Voltage
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial connector type
Protection structure : IP50
Mua Ngay :
8.878.000 ₫
5.504.360 ₫
AUT.VN Cảm biến Encoder Autonics E100H35-512-3-V-24
AUT.VN Cảm biến Encoder Autonics E100H35-512-3-V-24
Shaft inner diameter : Ø35mm
Max. response frequency : 300kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 300gf.cm(max. 0.0294N.m)
Resolution : 512P/R
Control output : Voltage
Power supply : 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial connector type
Protection structure : IP50
Shaft inner diameter : Ø35mm
Max. response frequency : 300kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 300gf.cm(max. 0.0294N.m)
Resolution : 512P/R
Control output : Voltage
Power supply : 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial connector type
Protection structure : IP50
Mua Ngay :
8.878.000 ₫
5.504.360 ₫
AUT.VN Cảm biến Encoder Autonics E100H35-512-3-T-5
AUT.VN Cảm biến Encoder Autonics E100H35-512-3-T-5
Shaft inner diameter : Ø35mm
Max. response frequency : 300kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 300gf.cm(max. 0.0294N.m)
Resolution : 512P/R
Control output : Totem pole
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial connector type
Protection structure : IP50
Shaft inner diameter : Ø35mm
Max. response frequency : 300kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 300gf.cm(max. 0.0294N.m)
Resolution : 512P/R
Control output : Totem pole
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial connector type
Protection structure : IP50
Mua Ngay :
8.878.000 ₫
5.504.360 ₫

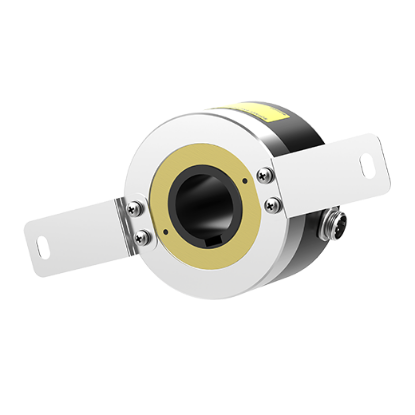

AUT.VN Cảm biến Encoder Autonics E100H35-512-3-T-24
AUT.VN Cảm biến Encoder Autonics E100H35-512-3-T-24
Shaft inner diameter : Ø35mm
Max. response frequency : 300kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 300gf.cm(max. 0.0294N.m)
Resolution : 512P/R
Control output : Totem pole
Power supply : 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial connector type
Protection structure : IP50
Shaft inner diameter : Ø35mm
Max. response frequency : 300kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 300gf.cm(max. 0.0294N.m)
Resolution : 512P/R
Control output : Totem pole
Power supply : 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial connector type
Protection structure : IP50
Mua Ngay :
8.878.000 ₫
5.504.360 ₫
AUT.VN Cảm biến Encoder Autonics E100H35-512-3-N-5
AUT.VN Cảm biến Encoder Autonics E100H35-512-3-N-5
Shaft inner diameter : Ø35mm
Max. response frequency : 300kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 300gf.cm(max. 0.0294N.m)
Resolution : 512P/R
Control output : NPN open collector
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial connector type
Protection structure : IP50
Shaft inner diameter : Ø35mm
Max. response frequency : 300kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 300gf.cm(max. 0.0294N.m)
Resolution : 512P/R
Control output : NPN open collector
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial connector type
Protection structure : IP50
Mua Ngay :
8.878.000 ₫
5.504.360 ₫
