Cảm biến Encoder

Cảm biến Encoder Autonics E60H20-1024-3-N-5
Shaft inner diameter : Ø20mm
Max. response frequency : 300kHz
Max. allowable revolution : 6000rpm
Starting torque : Max. 150gf.cm(max. 0.0147N.m)
Resolution : 1024P/R
Control output : NPN open collector
Power supply : 5VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial cable type
Protection structure : IP50

Cảm biến Encoder Autonics E60H20-1024-3-V-24
Shaft inner diameter : Ø20mm
Max. response frequency : 300kHz
Max. allowable revolution : 6000rpm
Starting torque : Max. 150gf.cm(max. 0.0147N.m)
Resolution : 1024P/R
Control output : Voltage
Power supply : 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial cable type
Protection structure : IP50

Cảm biến Encoder Autonics E60H20-1024-3-T-24-C
Đường kính trong trục : Ø20mm
Tần số đáp ứng tối đa : 300kHz
Độ phân giải cho phép tối đa : 6000rpm
Mô-men khởi động : Max. 150gf.cm(max. 0.0147N.m)
Độ phân giải : 1024P/R
Ngõ ra điều khiển : Totem pole
Nguồn cấp : 12-24VDC @(=) ±5%(sóng P-P: max. 5%)
Loại kết nối : Loại giắc cắm xuyên tâm
Cấu trúc bảo vệ : IP50

Cảm biến Encoder  Omron E6B2-CWZ3E 360P/R 2M
Rotary Encoder
Incremental
External Diameter: 40 dia.
Voltage output (NPN)
360 P/R
5 to 12 VDC
Phases A/B/Z
Pre-wired model
2 m

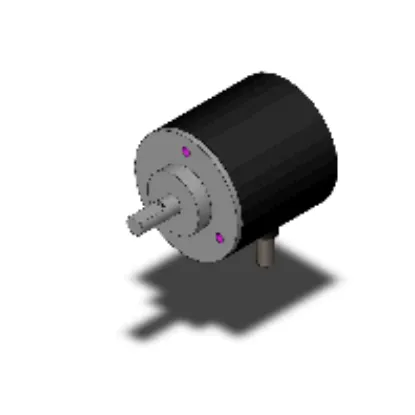

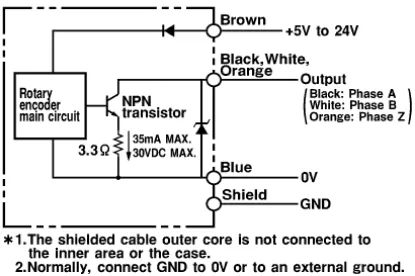

Cảm biến Encoder  Omron E6B2-CWZ6C 300P/R 0.5M
Rotary Encoder
Incremental
External Diameter: 40 dia.
NPN open-collector output
300 P/R
5 to 24 VDC
Phases A/B/Z
Pre-wired model
0.5 m

Cảm biến Encoder  Omron E6B2-CWZ3E 100P/R 0.5M
Rotary Encoder
Incremental
External Diameter: 40 dia.
Voltage output (NPN)
100 P/R
5 to 12 VDC
Phases A/B/Z
Pre-wired model
0.5 m

Cảm biến Encoder  Omron E6B2-CWZ3E 600P/R 2M
Rotary Encoder
Incremental
External Diameter: 40 dia.
Voltage output (NPN)
600 P/R
5 to 12 VDC
Phases A/B/Z
Pre-wired model
2 m

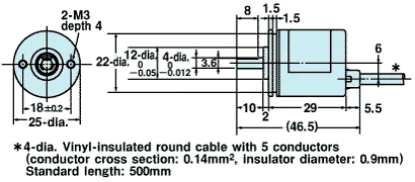

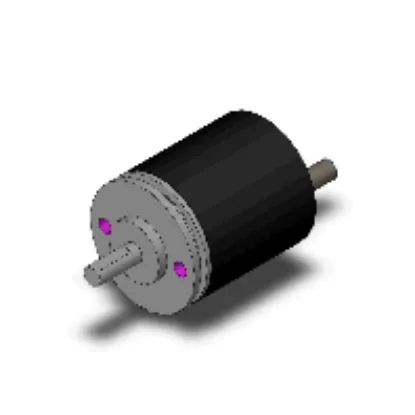

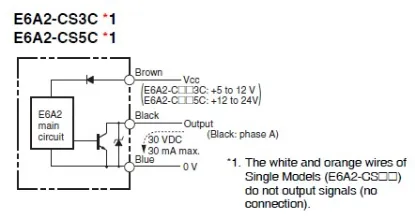

Cảm biến Encoder  Omron E6A2-CS5C 360P/R 2M
Rotary Encoder
Incremental
External Diameter: 25 dia.
NPN open collector output
360 P/R
12 to 24 VDC
Phases A
Pre-wired model
2 m

Cảm biến Encoder  Omron E6B2-CWZ6C 200P/R 2M
Rotary Encoder
Incremental
External Diameter: 40 dia.
NPN open-collector output
200 P/R
5 to 24 VDC
Phases A/B/Z
Pre-wired model
2 m
