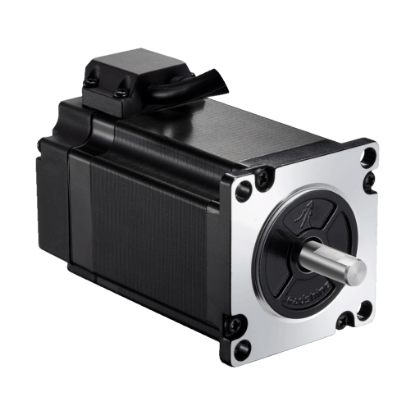

Closed Loop Stepper Motors CS-M Series Leadshine CS-M22323
2 phase, NEMA 23 frame size 96 mm (3.78 inch) long 5 A phase current 2.3 N.m (326 oz-in) holding torque 8 mm (0.315 inch) shaft size Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder High precision, low motor heating, and low vibration

Xuất xứ Trung Quốc, CO, CQ đầy đủ
Bảo hành 1 năm, có đổi mới
0968.053.025

Mua Ngay :

Closed Loop Stepper Motors CS-M Series Leadshine CS-M22313
2 phase, NEMA 23 frame size 75 mm (2.95 inch) long 4 A phase current 1.3 N.m (185 oz-in) holding torque 8 mm (0.315 inch) shaft size Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder High precision, low motor heating, and low vibration

Xuất xứ Trung Quốc, CO, CQ đầy đủ
Bảo hành 1 năm, có đổi mới
0968.053.025

Mua Ngay :

Closed Loop Stepper Motors CS-M Series Leadshine CS-M21708
2 phase, NEMA 17 frame size 83 mm (3.27 inch) long 2.5 A phase current 0.8 N.m (114 oz-in) holding torque 5 mm (0.197 inch) shaft size Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder High precision, low motor heating, and low vibration

Xuất xứ Trung Quốc, CO, CQ đầy đủ
Bảo hành 1 năm, có đổi mới
0968.053.025

Mua Ngay :

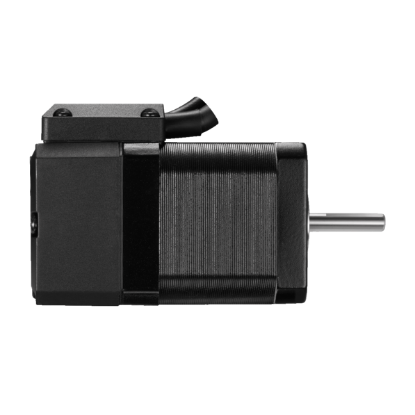

Closed Loop Stepper Motors CS-M Series Leadshine CS-M21706
2 phase, NEMA 17 frame size 70 mm (2.76 inch) long 2.5 A phase current 0.6 N.m (85 oz-in) holding torque 5 mm (0.197 inch) shaft size Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder High precision, low motor heating, and low vibration

Xuất xứ Trung Quốc, CO, CQ đầy đủ
Bảo hành 1 năm, có đổi mới
0968.053.025

Mua Ngay :

Closed Loop Stepper Motors CS-M Series Leadshine CS-M21704
2 phase, NEMA 17 frame size 62 mm (2.44 inch) long 1.5 A phase current 0.4 N.m (57 oz-in) holding torque 5 mm (0.197 inch) shaft size Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder High precision, low motor heating, and low vibration

Xuất xứ Trung Quốc, CO, CQ đầy đủ
Bảo hành 1 năm, có đổi mới
0968.053.025

Mua Ngay :

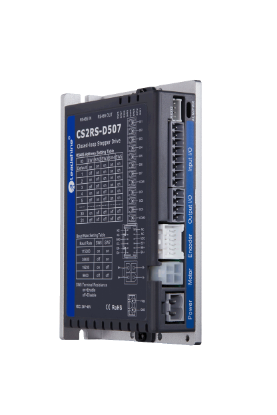

Closed Loop Stepper Drives Modbus RTU Leadshine CS2RS-D507
CS2RS Series are closed loop stepper drive based on standard Modbus RTU protocol, using RS485 communication can network up to 31 axes, built-in PR feature with 16-segment position table (PR Mode). They can not only solve the problem of step loss in the open loop stepper system, but also can save additional controllers in most of point-to-point applications, to greatly enhance system reliability and reduce the cost. CS2RS Series also support the feature of teaching, the operation modes of Profile Position, Profile Velocity and Homing. CS2RS-D503 can power 2-phase NEMA 17, 23, 24 stepper motors with 1000 ppr to 5000 ppr incremental encoders.

Xuất xứ Trung Quốc, CO, CQ đầy đủ
Bảo hành 1 năm, có đổi mới
0968.053.025

Mua Ngay :
