Các sản phẩm được gắn thẻ 'E40S6-2500-6-L-24'

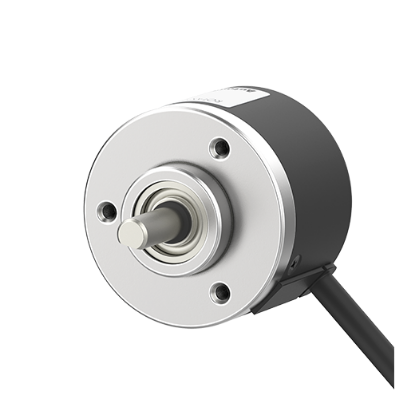

AUT.VN Cảm biến Encoder Autonics E40S6-2500-6-L-24
AUT.VN Cảm biến Encoder Autonics E40S6-2500-6-L-24
Shaft outer diameter : Ø6mm
Max. response frequency : 300kHz
Max. allowable revolution : 5000rpm
Starting torque : Max. 40gf.cm(max. 0.00392N.m)
Resolution : 2500P/R
Control output : Line Driver
Power supply : 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial cable type
Protection structure : IP50
Shaft outer diameter : Ø6mm
Max. response frequency : 300kHz
Max. allowable revolution : 5000rpm
Starting torque : Max. 40gf.cm(max. 0.00392N.m)
Resolution : 2500P/R
Control output : Line Driver
Power supply : 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Radial cable type
Protection structure : IP50
3.981.000 ₫
2.468.220 ₫
