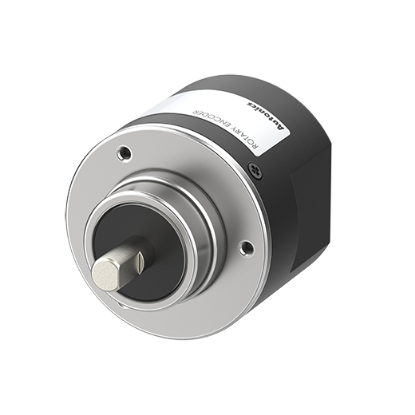

AUT.VN Cảm biến Encoder Autonics E50S8-3600-3-N-24-CR
Shaft outer diameter : Ø8mm
Max. response frequency : 300kHz
Max. allowable revolution : 5000rpm
Starting torque : Max. 800gf.cm(max. 0.0784N.m)
Resolution : 3600P/R
Control output : NPN open collector
Power supply : 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Axial connector type
Protection structure : IP64 (IEC standard)
