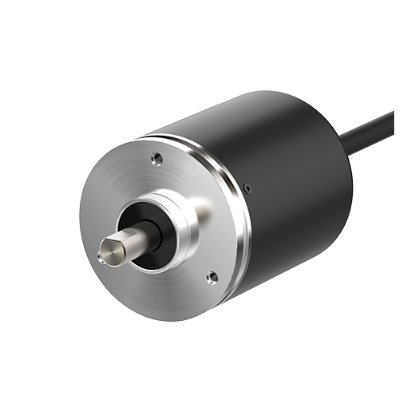

AUT.VN Cảm biến Encoder Autonics ENP-101F-012-N
Shaft outer diameter : Ø10mm
Max. response frequency : 20kHz
Max. allowable revolution : 3600rpm
Starting torque : Max. 500gf.cm(max. 0.049N.m)
Resolution : 12P/R
Output specification : Negative logic(NPN)
Rotating direction : CW
Control output : NPN open collector
Power supply : 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
Connection type : Axial cable type
