Servo Drives
EtherCAT

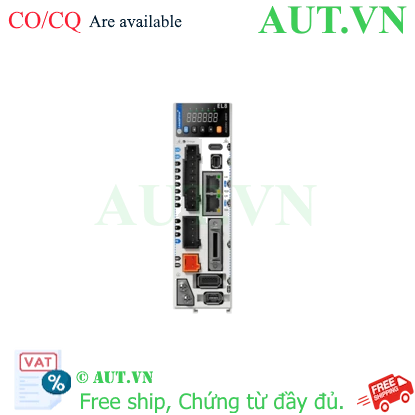

Leadshine EL8-EC1500F
Servo drives with 1500W power rating
User-configurable I/Os: 8 DI, 3 DO, 2 AI, 2AO and 2 high speed touch probe inputs
Equipped with internal regenerative resistor
Position, velocity and torque loop control
New servo functions including Zero Tracking Control (ZTC), Position comparison, Black box, 1-click/1-parameter easy tunings
Safety functions such as Safe Torque Off (STO) with SIL3 grading
Matching motors with power rating from 50W to 1500W
Motors with 23-bit magnetic/optical encoders
Optional holding brake
Xuất xứ Trung Quốc, CO, CQ đầy đủ
Bảo hành 1 năm, có đổi mới
0968.053.025
Servo Drives
EtherCAT
Leadshine EL7-EC750N
Servo drive with power rating from 400W to 2000W
User-configurable I/Os: 4 DI, 3 DO and 2 high speed touch probe input DB15 I/O port
USB Type-C tuning port, stable and easy to get
Equipped with internal regenerative resistor
Position, velocity and torque loop control
Servo functions including zero tracking control (ZTC), vibration suppression (Mechanical resonance and end vibration), friction compensation and auto gain adjustments
Matching motors with power rating from 30W to 750W
Motors with 23-bit magnetic/optical encoders
Optional holding brake
Xuất xứ Trung Quốc, CO, CQ đầy đủ
Bảo hành 1 năm, có đổi mới
0968.053.025
Servo Drives
EtherCAT

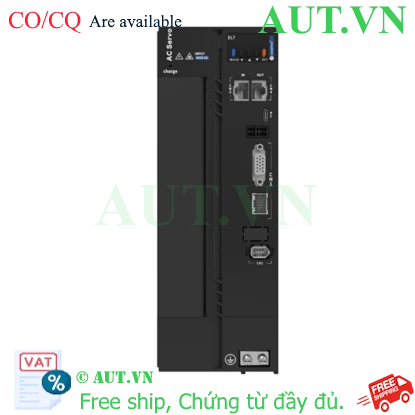

Leadshine EL7-EC4400NT
Servo drive with power rating from 750W to 7500W
User-configurable I/Os: 4 DI, 3 DO and 2 high speed touch probe inputs
Equipped with internal regenerative resistor
Position, velocity and torque loop control
Servo functions including zero tracking control (ZTC), vibration suppression (Mechanical resonance and end vibration), friction compensation and auto gain adjustments, etc
Matching motors with power rating from 750W to 7500W
Motors with 23-bit magnetic/optical encoders
Optional holding brake
Xuất xứ Trung Quốc, CO, CQ đầy đủ
Bảo hành 1 năm, có đổi mới
0968.053.025
Servo Drives
EtherCAT

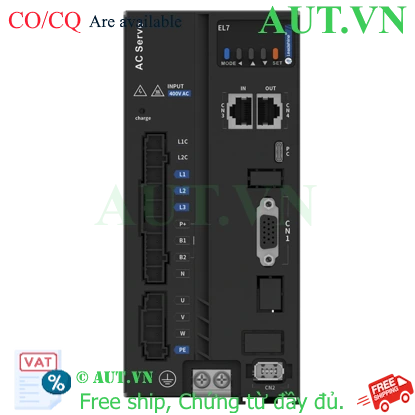

Leadshine EL7-EC3000NT
Servo drive with power rating from 750W to 7500W
User-configurable I/Os: 4 DI, 3 DO and 2 high speed touch probe inputs
Equipped with internal regenerative resistor
Position, velocity and torque loop control
Servo functions including zero tracking control (ZTC), vibration suppression (Mechanical resonance and end vibration), friction compensation and auto gain adjustments, etc
Matching motors with power rating from 750W to 7500W
Motors with 23-bit magnetic/optical encoders
Optional holding brake
Xuất xứ Trung Quốc, CO, CQ đầy đủ
Bảo hành 1 năm, có đổi mới
0968.053.025
Servo Drives
EtherCAT

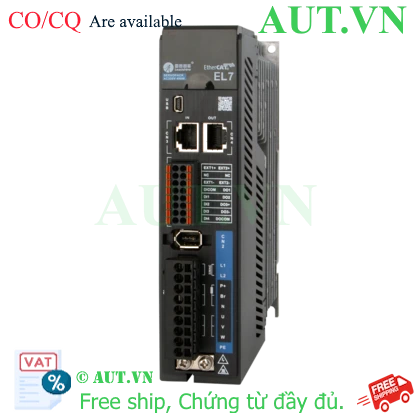

Leadshine EL7-EC1000F
Servo drive with power rating from 400W to 2000W
User-configurable I/Os: 4 DI, 3 DO, spring plug I/O port and 2 high speed touch probe input
Equipped with internal regenerative resistor
Position, velocity and torque loop control
Servo functions including model following control (MFC), vibration suppression (Mechanical resonance and end vibration), friction compensation and auto gain adjustments
Matching motors with power rating from 50W to 1000W
Motors with 23-bit magnetic/optical encoders
Optional holding brake
Xuất xứ Trung Quốc, CO, CQ đầy đủ
Bảo hành 1 năm, có đổi mới
0968.053.025
Servo Drives
ELD2 Series

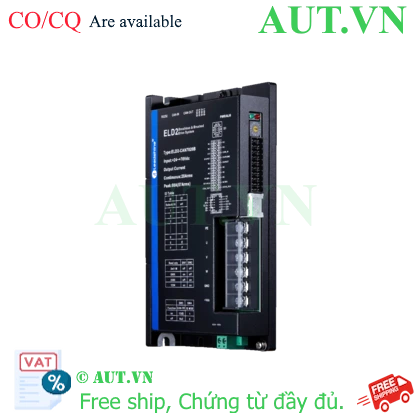

Leadshine ELD2-CAN7020B
The ELD2-CAN7020B servo drive can be controlled over CANopen. This servo drive operates in Profile Position, Profile velocity, Profile Torque, or Homing mode.
Xuất xứ Trung Quốc, CO, CQ đầy đủ
Bảo hành 1 năm, có đổi mới
0968.053.025
Servo Drives
CANopen
Leadshine ELD2-CAN7010B
The ELD2-CAN7010B servo drive can be controlled over CANopen. This servo drive operates in Profile Position, Profile velocity, Profile Torque, or Homing mode.
Xuất xứ Trung Quốc, CO, CQ đầy đủ
Bảo hành 1 năm, có đổi mới
0968.053.025
Servo Drives
CANopen
Leadshine ELD2-CAN7015B
The ELD2-CAN7015B servo drive can be controlled over CANopen. This servo drive operates in Profile Position, Profile velocity, Profile Torque, or Homing mode.
Xuất xứ Trung Quốc, CO, CQ đầy đủ
Bảo hành 1 năm, có đổi mới
0968.053.025
Servo Drives
EtherCAT

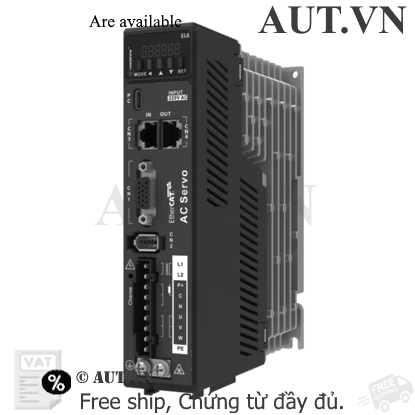

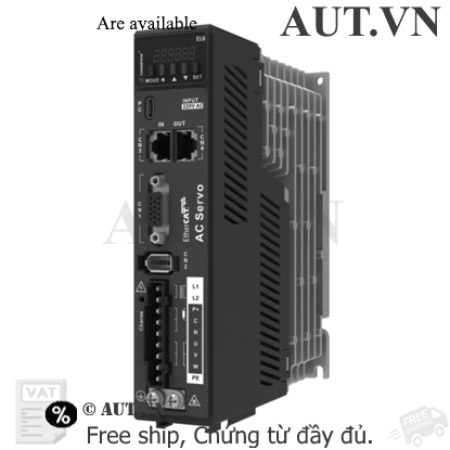

Leadshine EL6-EC400
Servo drive with power rating from 400W to 2000W
User-configurable I/Os: 4 DI, 3 DO and 2 high speed touch probe input
Equipped with internal regenerative resistor (For drives above 400W)
Position, velocity and torque loop control
Servo functions including zero tracking control (ZTC), vibration suppression (Mechanical resonance and end vibration), friction compensation and auto gain adjustments
Matching motors with power rating from 30W to 400W
Motors with 23-bit magnetic/optical encoders
Optional holding brake
Xuất xứ Trung Quốc, CO, CQ đầy đủ
Bảo hành 1 năm, có đổi mới
0968.053.025
