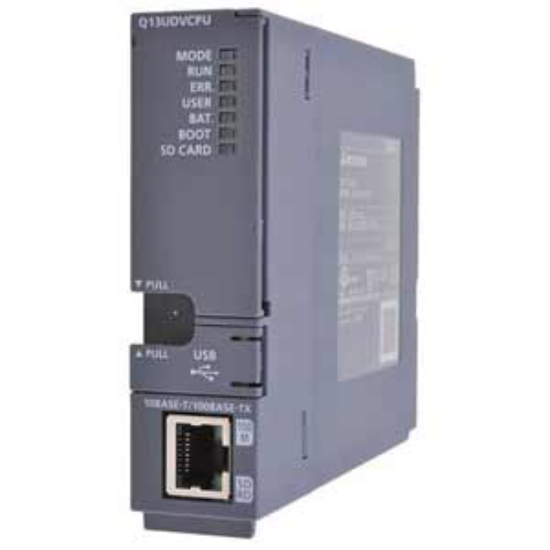

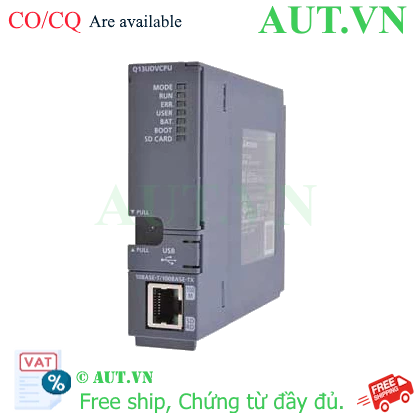

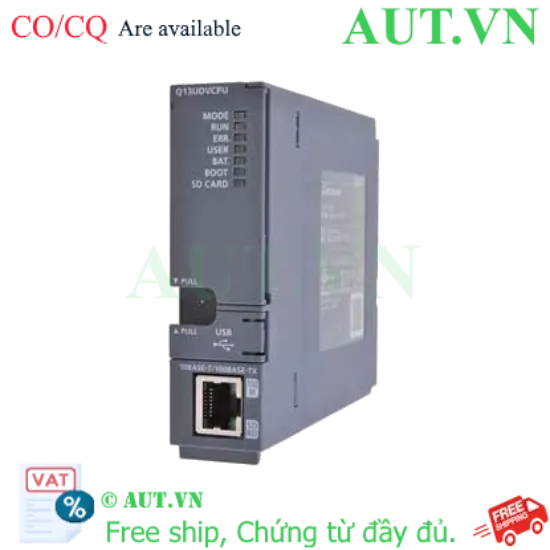

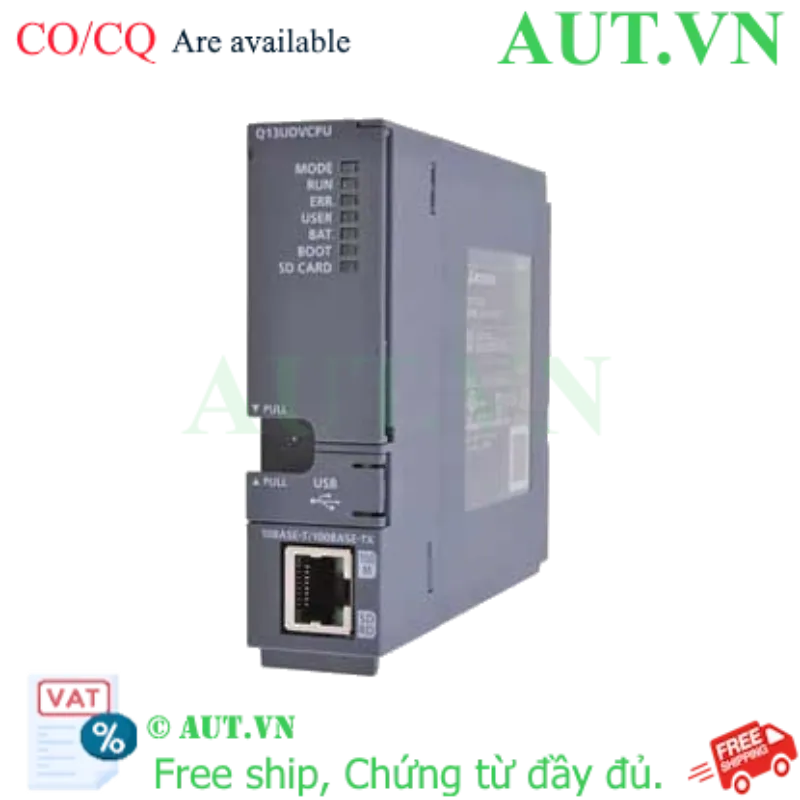

| Model | Q13UDVCPU |
| Loại | Mô đun |
| Bộ nhớ | 130Ksteps |
| Phụ kiện đi kèm | No |
| Phụ kiện mua rời | Battery holder unit and battery: Q6BAT |
| Cáp kết nối (Bán riêng) | QC05B, QC06B, QC12B, QC30B, QC50B |
| Mô-đun mở rộng (Bán riêng) | Input module: QX10, Input module: QX10-TS, Input module: QX28, Input m odule: QX40, Input module: QX40-TS, Input module: QX40-S1, Input module: QX40H, Input module: QX41, Input module: QX41-S1, Input module: QX41-S2, Input module: QX42, Input module: QX42-S1, Input module: QX50, Input module: QX70, Input module: QX70H, Input module: QX71, Input module: QX72, Input module: QX80, Input module: QX80-TS, Input module: QX80H, Input module: QX81, Input module: QX81-S2, Input module: QX82, Input module: QX82-S1, Input module: QX90H, Output module: QY10, Output module: QY10-TS, Output module: QY18A, Output module: QY22, Output module: QY40P, Output module: QY40P-TS, Output module: QY41H, Output module: QY41P, Output module: QY42P, Output module: QY50, Output module: QY68A, Output module: QY70, Output module: QY71, Output module: QY80, Output module: QY80-TS, Output module: QY81P, Output module: QY82P, I/O module: QH42P, I/O module: QX48Y57, I/O module: QX41Y41P, Interupt module: QI60, Analog input module: Q68ADV, Analog input module: Q62AD-DGH, Analog input module: Q66AD-DG, Analog input module: Q68ADI, Analog input module: Q64AD, Analog input module: Q64ADH, Analog input module: Q64AD-GH, Analog input module: Q68AD-G, Analog output module: Q68DAVN, Analog output module: Q68DAIN, Analog output module: Q64DAH, Analog output module: Q62DAN, Analog output module: Q62DA-FG, Analog output module: Q64DAN, Analog output module: Q66DA-G, Analog I/O module: Q64AD2DA, Load cell input:Q61LD, CT input module:Q68CT, Temperature input module:Q64TD, Temperature input module:Q64TDV-GH, Temperature input module:Q68TD-G-H01, Temperature input module:Q68TD-G-H02, Temperature input module:Q64RD, Temperature input module:Q64RD-G, Temperature input module:Q68RD3-G, Temperature control module:Q64TCTTN, Temperature control module:Q64TCTTBWN, Temperature control module:Q64TCRTN, Temperature control module:Q64TCRTBWN, Loop control module:Q62HLC, Simple motion module (With SSCNETIII/H connectivity):QD77MS2, Simple motion module (With SSCNETIII/H connectivity):QD77MS4, Simple motion module (With SSCNETIII/H connectivity):QD77MS16, Simple motion module (With CC-Link IE Field Network connectivity):QD77GF16, Positioning module with open collector output:QD75P1N, Positioning module with open collector output:QD75P1, Positioning module with open collector output:QD75P2N, Positioning module with open collector output:QD75P2, Positioning module with open collector output:QD75P4N, Positioning module with open collector output:QD75P4, Positioning module with open collector output:QD70P4, Positioning module with open collector output:QD70P8, Positioning module with differential output:QD75DN, Positioning module with differential output:QD75D, Positioning module with differential output:QD75D2N, Positioning module with differential output:QD75D2, Positioning module with differential output:QD75D4N, Positioning module with differential output:QD75D4, Positioning module with differential output:QD70D4, Positioning module with differential output:QD70D8, Positioning module with with SSCNET connectivity:QD75M1, Positioning module with with SSCNET connectivity:QD75M2, Positioning module with with SSCNET connectivity:QD75M4, Positioning module with with SSCNETIII connectivity:QD75MH1, Positioning module with with SSCNETIII connectivity:QD75MH2, Positioning module with with SSCNETIII connectivity:QD75MH4, Positioning module with with SSCNETIII connectivity:QD74MH8, Positioning module with with SSCNETIII connectivity:QD74MH16, Positioning module with open collector output with built-in counter function:QD72P3C3, High speed counter:QD62, High speed counter:QD62E, High speed counter:QD62D, High speed counter:QD63P6, High speed counter:QD64D2, High speed counter:QD65PD2, Channel isolated pulse input: QD60P8-G [...] |
| Mô-đun giao diện (Bán riêng) | CC-Link IE Control Network module: QJ71GP21-SX, CC-Link IE Control Net work module: QJ71GP21S-SX, MELSECNET/H module: QJ71LP21-25, MELSECNET/H module: QJ71LP21S-25, MELSECNET/H module: QJ72LP25-25, MELSECNET/H module: QJ71LP21G, MELSECNET/H module: QJ72LP25G, MELSECNET/H module: QJ71BR11, MELSECNET/H module: QJ72BR15, MELSECNET/H module: QJ71NT11B, CC-Link IE Field Network, Master/local station module: QJ71GF11-T2, CC-Link module, Master/local station module: QJ61BT11N, CC-Link/LT module, Master/local station module: QJ61CL12, FL-net (OPCN-2) Ver 2.00 module: QJ71FL71-T-F01, FL-net (OPCN-2) Ver 2.00 module: QJ71FL71-B2-F01, FL-net (OPCN-2) Ver 2.00 module: QJ71FL71-B5-F01, FL-net (OPCN-2) Ver 1.00 module: QJ71FL71-T, FL-net (OPCN-2) Ver 1.00 module: QJ71FL71-B2, FL-net (OPCN-2) Ver 1.00 module: QJ71FL71-B5, MODBUS module: QJ71MB91, MODBUS module: QJ71MT91, AS- interface module: QJ71AS92, AnyWireASLINK master module: QJ51AW12AL, MES interface module: QJ71MES96, High-speed data logger module: QD81DL96, High-speed data communication module: QJ71DC96, Ethernet module: QJ71E71-100, Ethernet module: QJ71E71-B2, Ethernet module: QJ71E71-B5, Serial communication module: QJ71C24N, Serial communication module: QJ71C24N-R2, Serial communication module: QJ71C24N-R4, Intelligent communication module: QD51, Intelligent communication module: QD51-R24, Intelligent communication module: SW1IVD-AD51HP [...] |
| Mô-đun cấp nguồn (Bán riêng) | Q61P, Q61P-D, Q61SP, Q62P, Q63P, Q63RP, Q64PN, Q64RP, Q64RPN |
| Đế cắm (Bán riêng) | Extension base: Q52B, Extension base: Q55B, Extension base: Q612B, Ext ension base: Q63B, Extension base: Q65B, Extension base: Q68B, High speed main base: Q312DB, High speed main base: Q35DB, High speed main base: Q38DB, Main base: Q312B, Main base: Q33B, Main base: Q35B, Main base: Q38B, Redundant power extension base: Q68RB, Redundant power main base: Q38RB, Slim type main base: Q32SB, Slim type main base: Q33SB, Slim type main base: Q35SB [...] |
| Thẻ nhớ (Bán riêng) | Q2MEM-16MBA, Q2MEM-1MBS, Q2MEM-2MBS, Q2MEM-32MBA, Q2MEM-8MBA, Q3MEM-4M BS, Q3MEM-4MBS-SET, Q3MEM-8MBS, Q3MEM-8MBS-SET, Q3MEM-CV, Q3MEM-CV-H [...] |
| Đầu nối (Bán riêng) | A6CON1, A6CON1E, A6CON2, A6CON2E, A6CON3, A6CON3E, A6CON4 |
| Phụ kiện khác (Bán riêng) | Battery: Q7BAT, Battery: Q7BAT-SET, Battery: Q8BAT, Battery: Q8BAT-SET |
| Category | Khối CPU |
| Ngôn ngữ lập trình | Ladder, SFC, ST, MELSAP3, MELSAP-L, Logic |
| Bàn phím lập trình | No |
| Kiểu hiển thị | Hiển thị LED |
| Phương thức giao tiếp | RS-232 (1ch) |
| Giao tiếp vật lý | 6-pin mini DIN (Female) |
| Số cổng giao tiếp | 2 |
| Số điểm I/O mở rộng | 4,096 |
| Chức năng bảo vệ | Đang cập nhật |
| Kiểu lắp đặt | Chân cắm |
| Môi trường hoạt động | Trong nhà |
| Khối lượng tương đối | 200g |
| Chiều rộng tổng thể | 27.4mm |
| Chiều cao tổng thể | 98mm |
| Chiều sâu tổng thể | 115mm |
| Tiêu chuẩn | CE, EAC, UL |
| Thiết bị tương thích | MELSEC-Q series |
